Intermediate Wire Drawing Machine
The machine is for drawing max 3.5mm copper wire to be 0.4-1.6mm wire. This machine combines high-speed drawing, continuous annealing, and automatic spooling into one efficient line.
- Product Details
- Applications
- Technical Parameters
- RFQ & FAQ
Product Overview
The machine is for drawing max 3.5mm copper wire to be 0.4- 1.6mm wire. This machine combines high-speed drawing, continuous annealing, and automatic spooling into one efficient line.
Structural Features And Configuration
The annealing unit is vertical structure. It uses a three-section principle (Pre-heating, Annealing, Drying) with DC power. This ensures the wire is fully annealed and dried before spooling, preventing oxidation.

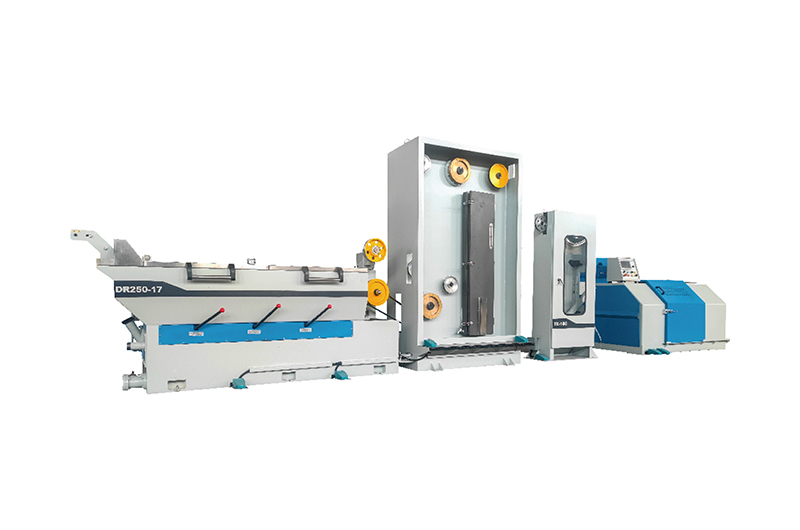

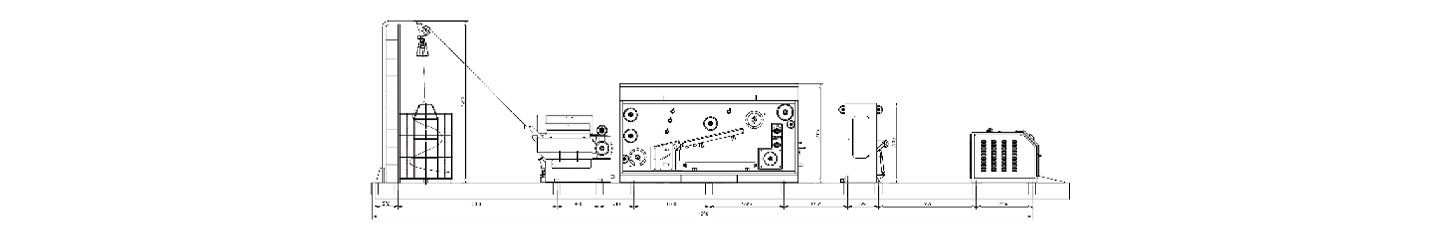

Product Images And Drawings
Applications And Process Scope
Designed to support a wide range of wire and cable processing requirements with flexible drive and tension configurations.
Building wire
Technical Specifications
Technical data for the DR-9DT, DR-13DT, DR-17DT, DR-21DT planetary stranding machine models.
| Type | DR-9DT | DR-13DT | DR-17DT | DR-21DT |
|---|---|---|---|---|
| Control system | Traditional analog type/digital control with production record | |||
| Outlet dia. (mm) | Ø1.0-Ø2.76 | Ø0.7-Ø2.0 | Ø0.4-Ø1.6 | Ø0.3-Ø1.2 |
| Inlet dia. (mm) | Ø2.6-Ø3.5 | Ø2.6-Ø3.5 | Ø2.6-Ø3.5 | Ø2.6-Ø3.5 |
| Max. Line speed (m/min) | 1200 | 1500 | 1800 | 1800 |
| Max. Die number | 9 | 13 | 17 | 21 |
| Slip ratio of m/c (%) | 20%+16.67% | 17%+13% | 20%+15.5% | 15.5%+13% |
| Frame | Welded by steel plate | |||
| Capstan | Tungsten carbide | |||
| Capstan dia. (mm) | 300 | 280 | 250 | 250 |
| Speed capstan dia. (mm) | 300 | 300 | 250 | 250 |
| Bobbin size (mm) | Ø500~Ø630 (Optional) | |||
| Bobbin loading & unloading type | Bi-shafts cone | |||
| Annealing method | DC. Three-section annealing | |||
| Main motor (kw) | AC 45 | AC 55 | AC 55 | AC 55 |
| Spool motor (kw) | AC 15 | AC 15 | AC 15 | AC 15 |
| Max. Annealer voltage (V) | DC60 | |||
| Max. Annealer current (A) | 2000 | |||
| Power source | 380V, 50/60HZ | |||
| Revise system | Synchronous control spooler | |||
| Detecting device | Pneumatic by swing arm | |||
| Gear/bearing lubrication | Pump enforce oil | |||
Frequently Asked Questions
Find answers to common questions about product selection, configuration and technical requirements.
Information required for quotation?
Intended product; material and input/output diameter; wire quantity, finished diameter, and required pitch; required speed; electrical supply and floor space.
How should the correct model be selected?
Match the required parameters to Section 5, then confirm the final configuration in a product-specific technical agreement.
Are optional or customized configurations included?
Only changes and optional devices expressly listed in the final technical proposal and supply scope are included.
Which values govern the final purchase?
Catalog data are transcribed from the supplied source; the signed technical agreement governs the final scope and values.
