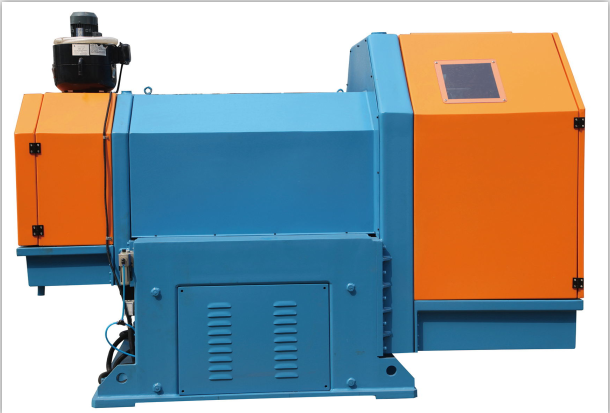

Interlock armoring machine


Applicator:

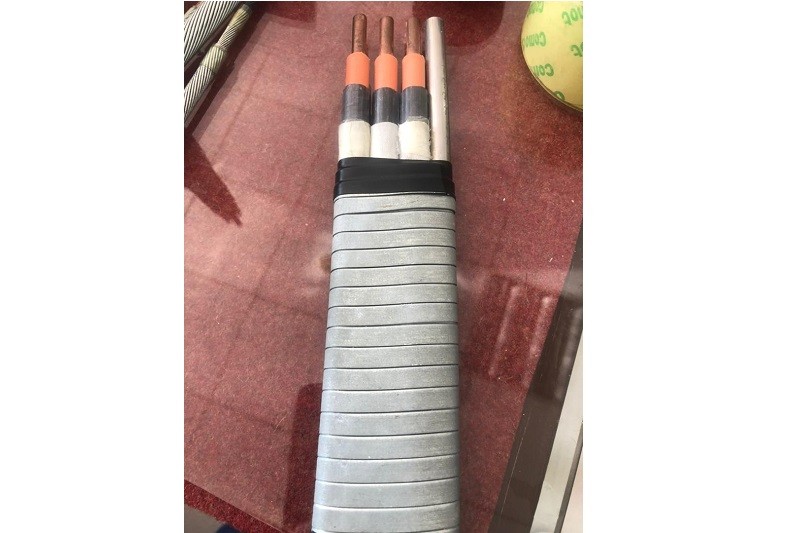

For interlocking the round cable, AL alloy cable, flat submersible oil pump cable and fire-proof cable.

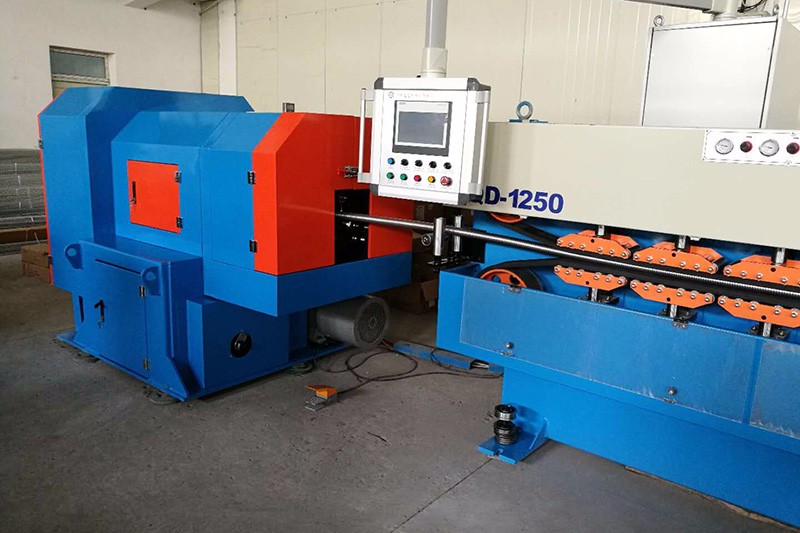

Components:

2.1. Pay off

2.2. Al tape accumulator

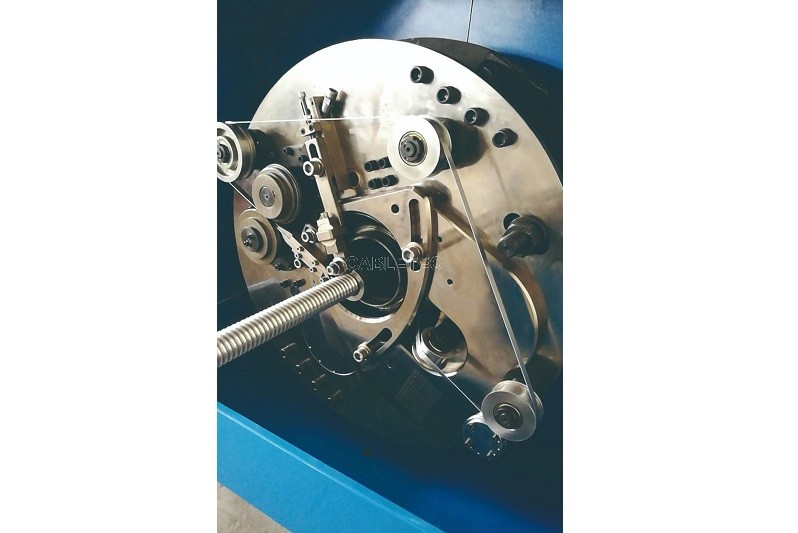

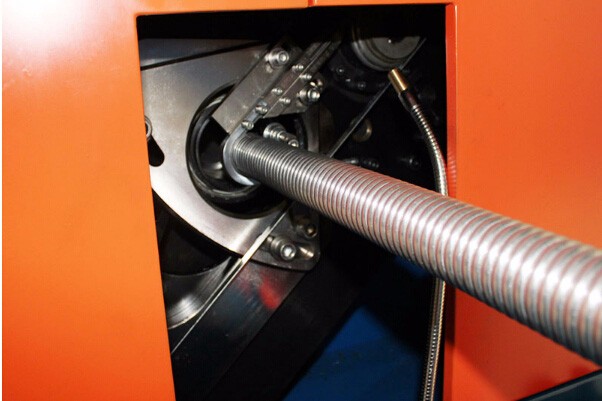

2.3. Armoring main machine

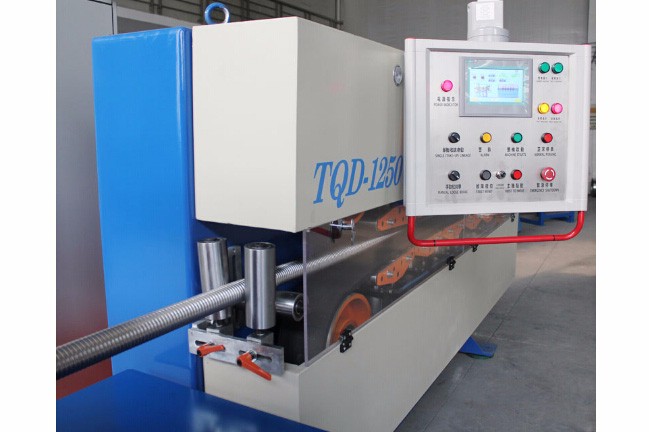

2.4. Caterpillar

2.5. Take up with traverse

2.6. Rewinder

2.7. Electric controlling cabinet


Feature:

3.1. Adopts Siemens control system, follows the international IEC standard, and supplies the perfect electrical solutions.

3.2. Quality management, processing and technology all follow the export standards, to provide high quality machines.

3.3. We focus on details, loading and unloading part, we use hard AL alloy to make sure the tape pad is on the centering line.


Parameter:

Type

Rotation speed
(rpm)

Diameter
(mm)

Tape material

Tape size
(Width x Thickness)

Motor
(KW)

Capstan motor
(KW)

Center height
(mm)

LSKZ-50

1200

6-45

Al alloy, Galvanized steel, stainless steel, copper

(9.5, 12.7) x (0.5, 0.65)

22

1.0

1000

LSKZ-100

800

10-95

(9.5, 12.7, 19, 25.4) x (0.5, 0.65)

22

1.5

1000

LSKZ-130

800

10-125

22

1.5

1000
