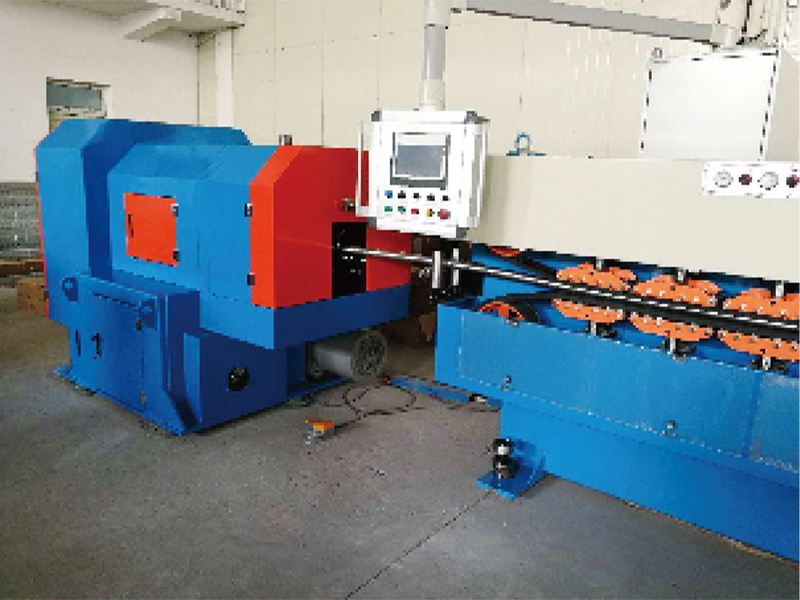

Interlock Armoring Machine
The machine is for interlocking the round cable, AL alloy cable, flat submersible oil pump cable and fire-proof cable.
- Product Details
- Applications
- Technical Parameters
- RFQ & FAQ
Product Overview
The machine is for interlocking the round cable, AL alloy cable, flat submersible oil pump cable and fire-proof cable.
Structural Features And Configuration

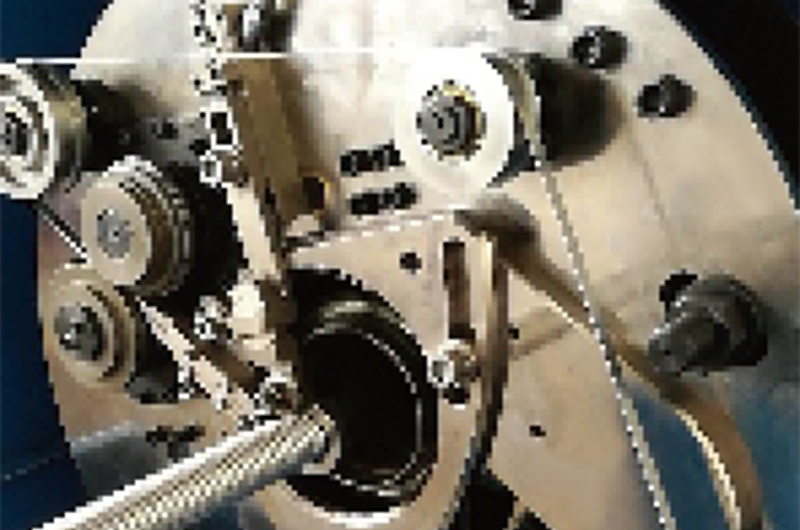

Adopt high strength hard aluminum alloy for the tape loading parts. This lightweight yet strong material allows for higher rotation speeds while ensuring the tape pad remains centered for precise forming.

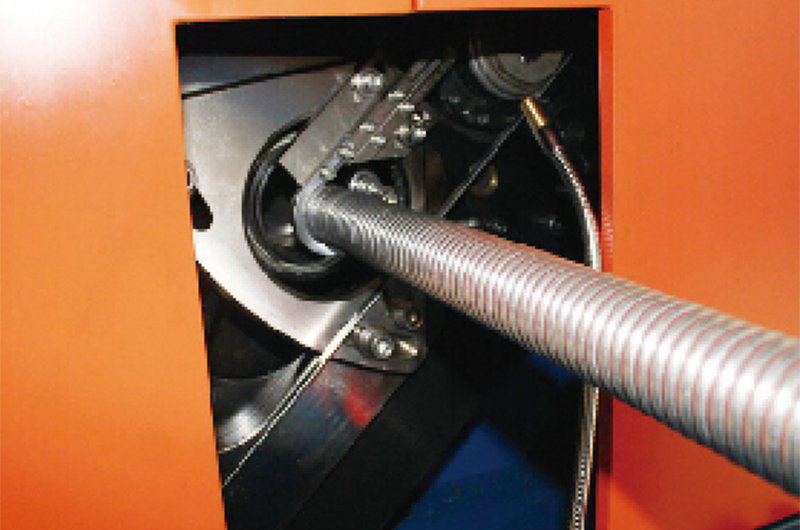

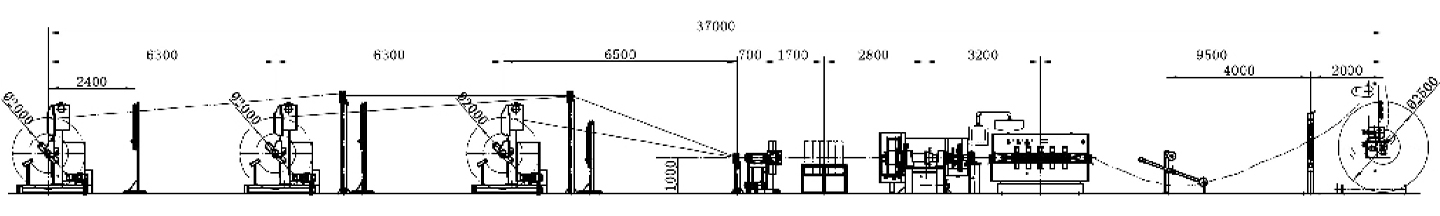

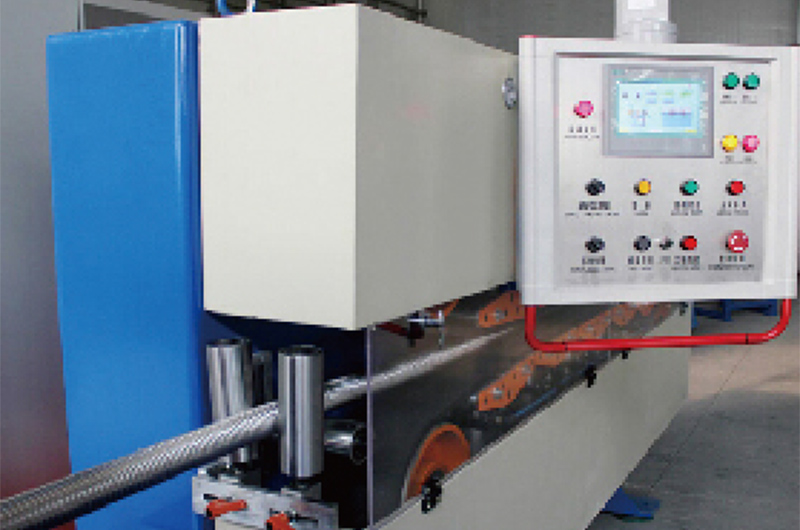

Product Images And Drawings
Applications And Process Scope
Designed to support a wide range of wire and cable processing requirements with flexible drive and tension configurations.
Submersible pump cables: Using aluminum alloy, galvanized steel tape, stainless steel tape to withstand harsh downhole environments.
Fire-proof cable
AC90 cable
Technical Specifications
Technical data for the LSKZ-50, LSKZ-100, LSKZ-130 planetary stranding machine models.
| Type | Rotation speed (rpm) | Diameter (mm) | Armoring tape material | Armoring tape size (mm) | Motor Power (kw) | Capstan motor power (kw) | Center height (mm) |
|---|---|---|---|---|---|---|---|
| LSKZ-50 | 800 | 10-40 | Al alloy / Galvanized | (9.5, 12.7) * (0.5, 0.65) | 22 | 1.5 | 1000 |
| LSKZ-100 | 800 | 10-90 | steel/stainless | (9.5, 12.7, 19) | 22 | 2.5 | 1000 |
| LSKZ-130 | 800 | 8-120 | steel/copper | *(0.5-1.0) | 22 | 2.5 | 1000 |
Frequently Asked Questions
Find answers to common questions about product selection, configuration and technical requirements.
Information required for quotation?
Intended product; material and input/output diameter; wire quantity, finished diameter, and required pitch; required speed; electrical supply and floor space.
How should the correct model be selected?
Match the required parameters to Section 5, then confirm the final configuration in a product-specific technical agreement.
Are optional or customized configurations included?
Only changes and optional devices expressly listed in the final technical proposal and supply scope are included.
Which values govern the final purchase?
Catalog data are transcribed from the supplied source; the signed technical agreement governs the final scope and values.
