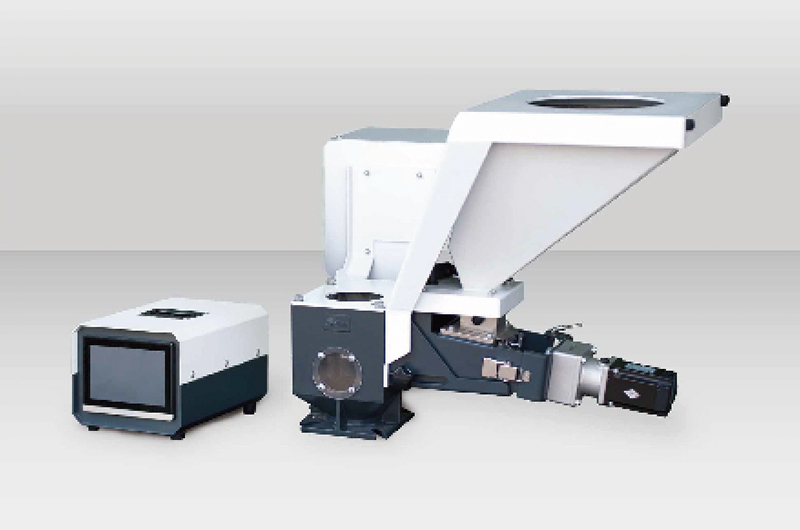

Gravimetric Doser - SGD
Gravimetric doser adopts servo drive and PLC control. It can meet the customer's requirements for the precise proportion of plastic components added during product injection molding or extrusion. It is suitable for automatic proportion mixing of new materials, recyclable materials, masterbatches or additives. There are also double-color masterbatches that can be used in combination according to customer needs. Since the amount of masterbatch added is relatively small and its consumption is also small, it can be matched with the positive pressure air filler VL to achieve automatic replenishment of masterbatch.
- Product Details
- Technical Parameters
- RFQ & FAQ
Product Overview
Gravimetric doser adopts servo drive and PLC control. It can meet the customer's requirements for the precise proportion of plastic components added during product injection molding or extrusion. It is suitable for automatic proportion mixing of new materials, recyclable materials, masterbatches or additives. There are also double-color masterbatches that can be used in combination according to customer needs. Since the amount of masterbatch added is relatively small and its consumption is also small, it can be matched with the positive pressure air filler VL to achieve automatic replenishment of masterbatch.
Product Images And Drawings
Technical Specifications
Technical data for the SGD, SGD-D planetary stranding machine models.
| Model | SGD | SGD-D |
|---|---|---|
| Motor power (KW) | 0.4 | 0.4×2 |
| Screw diameter (mm) | 16 | 16 |
| Output (KG/HR) | 0.1-32 | 0.1-64 |
| Hopper (L) | 10 | 10 |
| Dimension (H*W*D) (mm) | 510*720*536 | 510*1196*536 |
| Net Weight (KG) | 37 | 37 |
Frequently Asked Questions
Find answers to common questions about product selection, configuration and technical requirements.
Information required for quotation?
Intended product; material and input/output diameter; wire quantity, finished diameter, and required pitch; required speed; electrical supply and floor space.
How should the correct model be selected?
Match the required parameters to Section 3, then confirm the final configuration in a product-specific technical agreement.
Are optional or customized configurations included?
Only changes and optional devices expressly listed in the final technical proposal and supply scope are included.
Which values govern the final purchase?
Catalog data are transcribed from the supplied source; the signed technical agreement governs the final scope and values.
