Gear Driver Type Copper Rod Breakdown Machine
This machine is used to draw 1.2~3.5mm copper wires. The drawing blocks are mounted in one row. The constant-speed wheel and the other 12 drawing block are driven by two motors respectively. Such design makes easy operation and change dies quickly.
- Product Details
- Applications
- Technical Parameters
- RFQ & FAQ
Product Overview
This machine is used to draw 1.2~3.5mm copper wires. The drawing blocks are mounted in one row. The constant-speed wheel and the other 12 drawing block are driven by two motors respectively. Such design makes easy operation and change dies quickly.
Structural Features And Configuration
Horizontal serial structure. Dual motor drive. Quick die change can be achieved.
High-precision grinding helical gear transmission. High efficiency, low noise.
Drawing capstan combined design.
Fully immersed lubrication cooling to ensure the quality of the wire
DC/AC annealing control, annealing automatic tracking speed.
Ensure that the elongation of copper wire is stable and uniform.

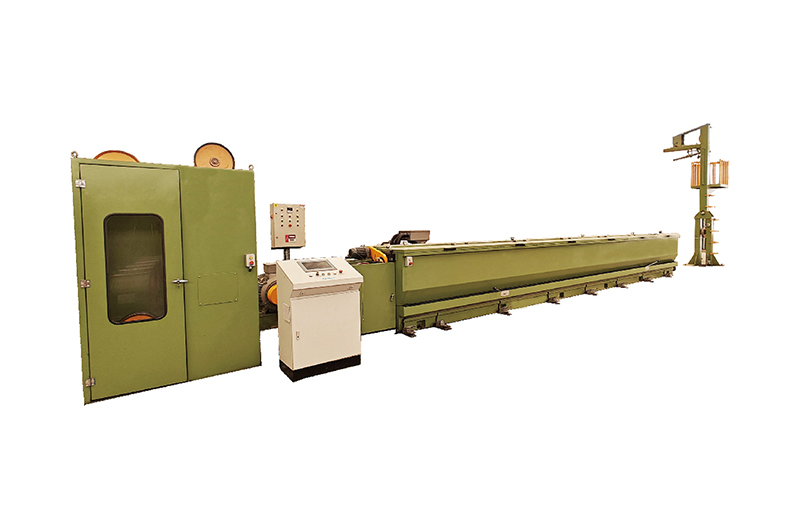

Product Images And Drawings
Applications And Process Scope
Designed to support a wide range of wire and cable processing requirements with flexible drive and tension configurations.
Power cable
Building wire
ACSR cable
Technical Specifications
Technical data for the DR400-7, DR450-9, DR450-11, DR450-13, DR450-15 planetary stranding machine models.
| Machine Type | DR400-7 | DR450-9 | DR450-11 | DR450-13 | DR450-15 |
|---|---|---|---|---|---|
| Inlet Dia. (mm) | Ø8 | Ø8 | Ø8 | Ø8 | Ø8 |
| Outlet Dia. (mm) | Ø2.0-Ø3.5 | Ø2.0-Ø3.5 | Ø1.6-Ø3.5 | Ø1.2-Ø3.5 | Ø1.0-Ø3.5 |
| Drawing speed (Max) (m/min) | 800 | 1200 | 1200 | 1500 | 1800 |
| No.of dies | 7 | 9 | 11 | 13 | 15 |
| Die OD (Max) (mm) | Ø55 | Ø55 | Ø55 | Ø55 | Ø55 |
| Capstan Dia. (mm) | 400 | 450 | 450 | 450 | 450 |
| Finished capstan Dia. (mm) | 400 | 450 | 450 | 450 | 450 |
| Main motor power (kw) | AC160 | AC200 | AC250 | AC280 | AC280 |
| Spooler motor (kw) | AC55 | AC75 | |||
| Lubrication type | Immersed Type | ||||
| Gear/bearing lubrication | Pump forced oil | ||||
| Annealer | Online continuous annealer | On! | ne continuous anne | aler | |
| Take up type (Optional) | Single Spooler/ Double Spooler/ Fully automatic double Spooler/ Down Coiler/ Compact spooler | ouble Spooler/ Fully | automatic double | S}: 0oler/ Down Coiler/ | spooler |
Frequently Asked Questions
Find answers to common questions about product selection, configuration and technical requirements.
Information required for quotation?
Intended product; material and input/output diameter; wire quantity, finished diameter, and required pitch; required speed; electrical supply and floor space.
How should the correct model be selected?
Match the required parameters to Section 4, then confirm the final configuration in a product-specific technical agreement.
Are optional or customized configurations included?
Only changes and optional devices expressly listed in the final technical proposal and supply scope are included.
Which values govern the final purchase?
Catalog data are transcribed from the supplied source; the signed technical agreement governs the final scope and values.
