Gear Driver Type Aluminum and Alloy Rod Breakdown Machine
This machine is used to draw 1.7-4.0mm aluminum wires. The drawing blocks are mounted in one row. The constant-speed wheel and the other 8 drawing block are driven by two motors respectively. Such design makes easy operation and change dies quickly.
- Product Details
- Applications
- Technical Parameters
- RFQ & FAQ
Product Overview
This machine is used to draw 1.7- 4.0mm aluminum wires. The drawing blocks are mounted in one row. The constant-speed wheel and the other 8 drawing block are driven by two motors respectively. Such design makes easy operation and change dies quickly.
Structural Features And Configuration
Horizontal serial structure. Dual motor drive. Quick die change can be achieved.
High-precision grinding helical gear transmission. High efficiency, low noise.
Drawing capstan combined design.
Fully immersed lubrication cooling to ensure the quality of the wire
DC/AC annealing control, annealing automatic tracking speed.
Ensure that the elongation of aluminum wire is stable and uniform.

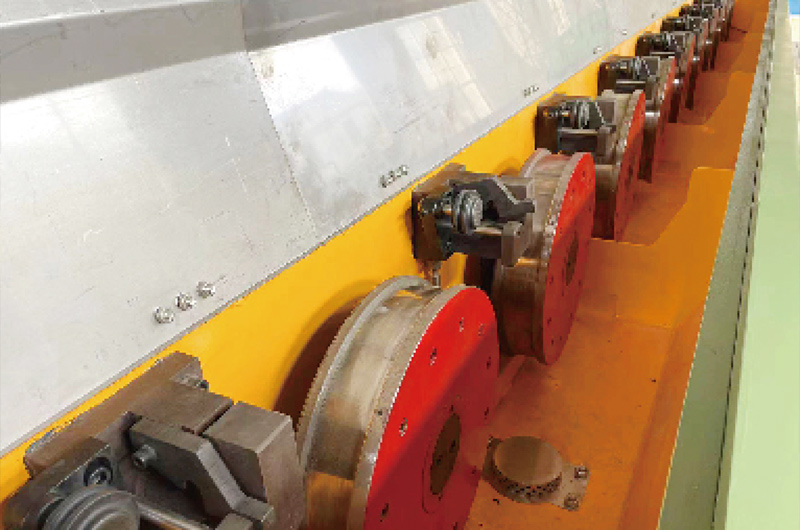

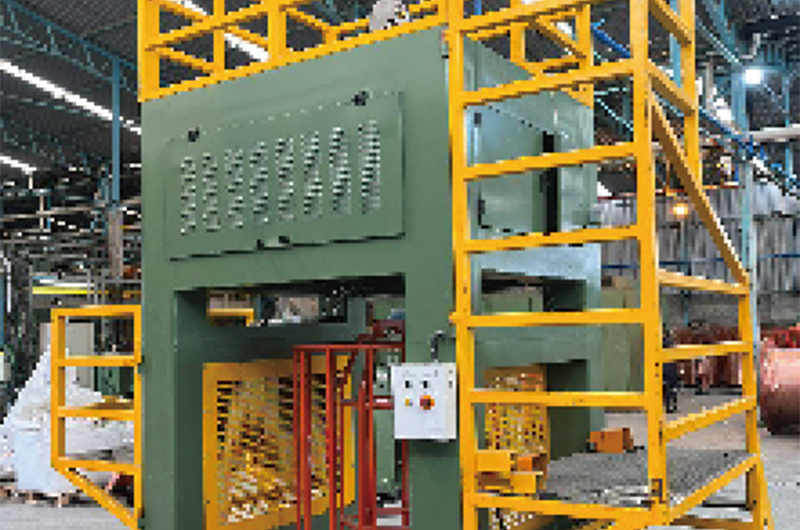

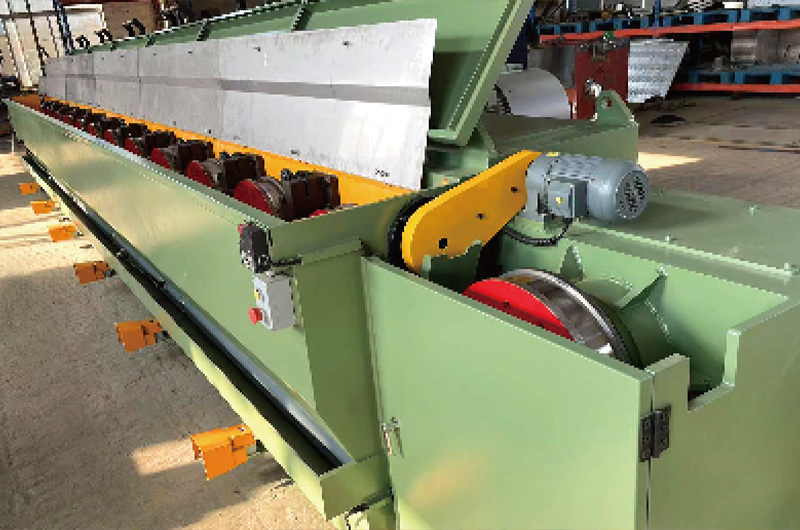

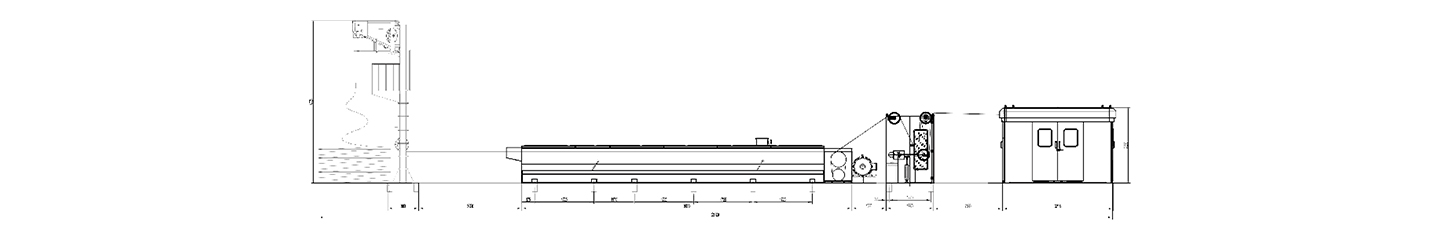

Product Images And Drawings
Applications And Process Scope
Designed to support a wide range of wire and cable processing requirements with flexible drive and tension configurations.
Power cable
Building wire
ACSR cable
Technical Specifications
Technical data for the CT450-9, CT450-11, CT450-13, CT450-15 planetary stranding machine models.
| Type | CT450-9 | CT450-11 | CT450-13 | CT450-15 |
|---|---|---|---|---|
| Inlet dia. (mm) | Ø9.5 | Ø9.5 | Ø9.5 | Ø9.5 |
| Outlet dia. (mm) | Ø2.6-Ø3.5 | Ø2.0-Ø4.5 | Ø1.6-Ø4.5 | Ø1.3-Ø4.5 |
| Max. Drawing speed (m/min) | 1000 | 1200 | 1500 | 1800 |
| Max. Die outer dia. (mm) | Ø55 | Ø55 | Ø55 | Ø55 |
| Capstan dia. (mm) | 450 | 450 | 450 | 450 |
| Speed capstan dia. (mm) | 450 | 450 | 450 | 450 |
| Main motor power (kw) | AC200 | AC250 | AC280 | AC280 |
| Speed motor power (kw) | AC55 | |||
| Lubrication type | Immersed type | |||
| Gear/bearing lubrication | Pump enforce oil | |||
Frequently Asked Questions
Find answers to common questions about product selection, configuration and technical requirements.
Information required for quotation?
Intended product; material and input/output diameter; wire quantity, finished diameter, and required pitch; required speed; electrical supply and floor space.
How should the correct model be selected?
Match the required parameters to Section 5, then confirm the final configuration in a product-specific technical agreement.
Are optional or customized configurations included?
Only changes and optional devices expressly listed in the final technical proposal and supply scope are included.
Which values govern the final purchase?
Catalog data are transcribed from the supplied source; the signed technical agreement governs the final scope and values.
