Electroplating Tin Line
The machine is a high speed and high quality equipment which is mainly used for plating tin on the bare copper conductor. It mainly includes mechanical, electrical, and other auxiliary system and environment protection equipment such as waste air scrubber and vacuum evaporator.
- Product Details
- Applications
- Technical Parameters
- RFQ & FAQ
Product Overview
The machine is a high speed and high quality equipment which is mainly used for plating tin on the bare copper conductor. It mainly includes mechanical, electrical, and other auxiliary system and environment protection equipment such as waste air scrubber and vacuum evaporator.
Structural Features And Configuration
Max speed: 15m/s
A fully sealed trough to reduce the potion smell
With environment protection equipment such as waste air scrubber and vacuum evaporator

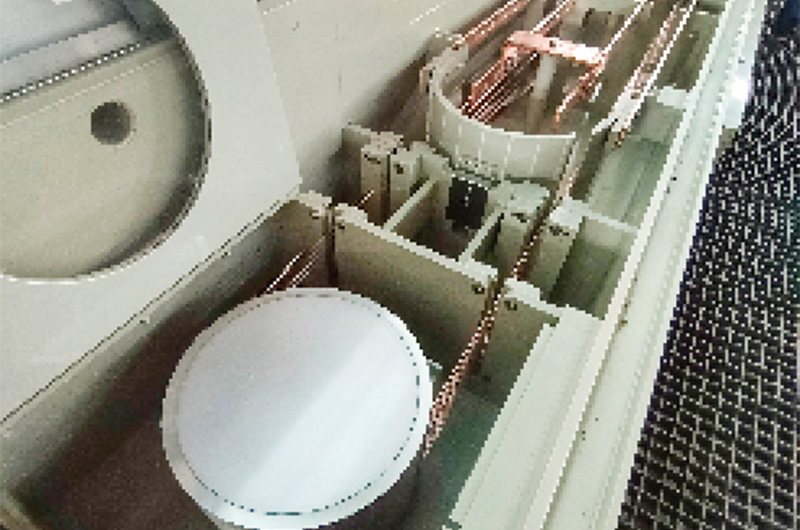

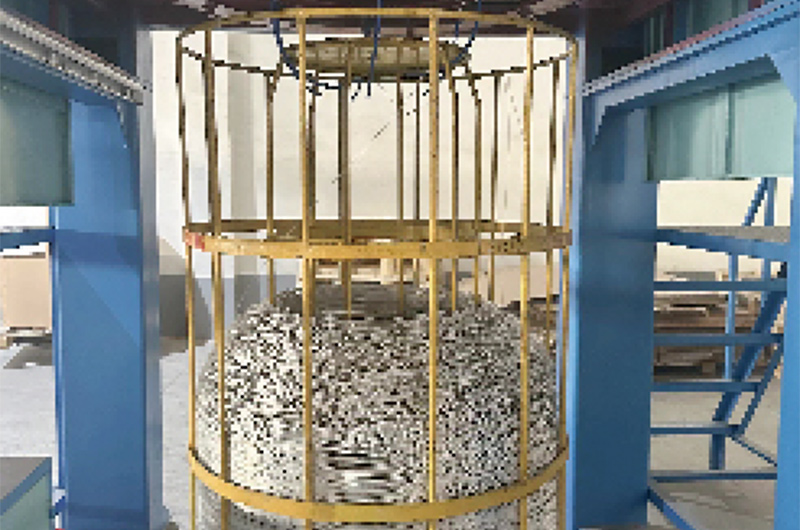

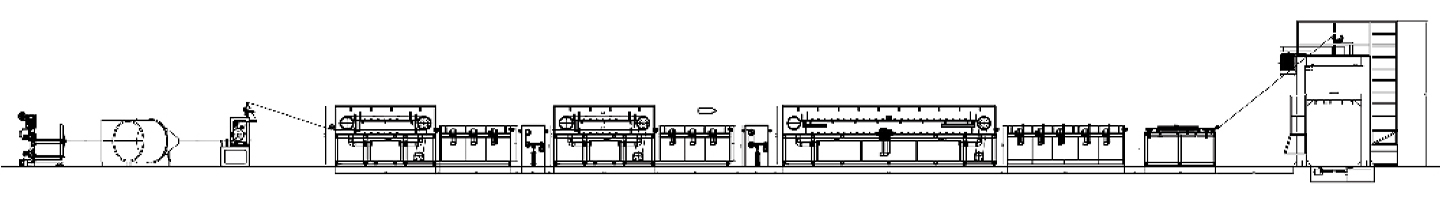

Product Images And Drawings
Applications And Process Scope
Designed to support a wide range of wire and cable processing requirements with flexible drive and tension configurations.
Solar cable
Technical Specifications
Technical data for the CT-300-3000A, CT-300-4000A, CT-400-6500A, CT-400-13000A planetary stranding machine models.
| Model | CT-300-3000A | CT-300-4000A | CT-400-6500A | CT-400-13000A |
|---|---|---|---|---|
| Inlet wire material | Copper wire with low oil pollution | |||
| Diameter (mm) | 0.6-1.6 | 0.6-1.6 | 1.2-2.6mm | 1.2-2.6 |
| Max. Speed (m/s) | 7 | 10 | 12 | 15 |
| Power | 3000A/9V (Air cooling) | 4000A/9V (Air cooling) | 6500A/9V (Air cooling) | 6500A/9V*2 (Air cooling) |
| Coating material name | Tin | Tin | Tin | Tin |
| Coating material thickness (um) | 1-20 | 1-20 | 1-20 | 1-20 |
| Take up type | 630mm Bobbin type take up | 800mm Barre type take up | ||
| Pay off type | Active bobbin type pay off | Bobbin type cone flyer pay off | ||
Frequently Asked Questions
Find answers to common questions about product selection, configuration and technical requirements.
Information required for quotation?
Intended product; material and input/output diameter; wire quantity, finished diameter, and required pitch; required speed; electrical supply and floor space.
How should the correct model be selected?
Match the required parameters to Section 3, then confirm the final configuration in a product-specific technical agreement.
Are optional or customized configurations included?
Only changes and optional devices expressly listed in the final technical proposal and supply scope are included.
Which values govern the final purchase?
Catalog data are transcribed from the supplied source; the signed technical agreement governs the final scope and values.
