E Type Heavy Duty Type High Speed Braiding Machine
The machine is specifically designed to handle large bobbins (up to 5kg) and thicker braiding wires (up to 0.40mm). This makes it the perfect solution for applying heavy copper shielding
- Product Details
- Applications
- Technical Parameters
- RFQ & FAQ
Product Overview
The machine is specifically designed to handle large bobbins (up to 5kg) and thicker braiding wires (up to 0.40mm). This makes it the perfect solution for applying heavy copper shielding
Structural Features And Configuration
For 0.2-0.4mm braiding wire
Equipped with PLC and touch screen
Lubrication: Automatic lubricating system reduces wear on gears
Safety Cover: The machine is fully enclosed

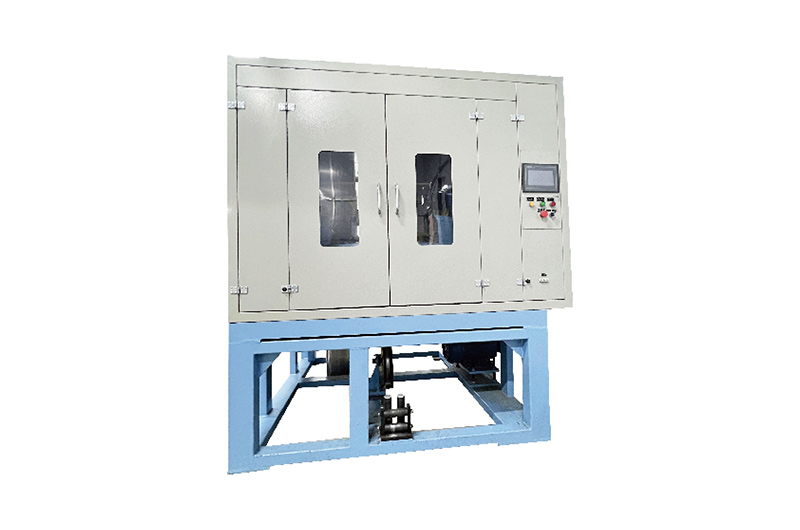

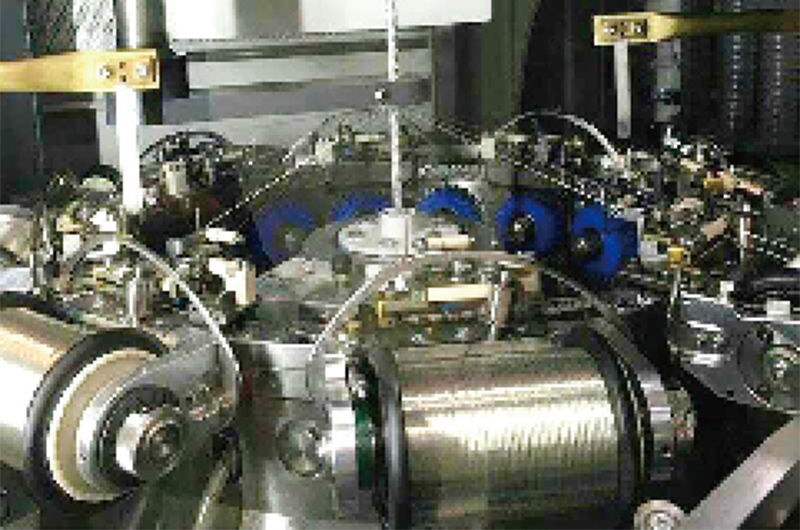

Product Images And Drawings
Applications And Process Scope
Designed to support a wide range of wire and cable processing requirements with flexible drive and tension configurations.
Power cables: Thick copper wire shielding for large-diameter power cables.
Technical Specifications
Technical data for the 16E, 24E planetary stranding machine models.
| Model | 16E | 24E |
|---|---|---|
| braiaing type | 2 stack 2 | 2 stack 2 |
| Braiding direction | Vertical | Vertical |
| Number of spindles | 16 (8 Upper spindles, 8 lower spindles) | 24 (12 Upper spindles, 12 lower spindles) |
| Bobbin size for spindles | Ø110*Ø48*100*110 | Ø110*Ø48*100*110 |
| Rotation speed (rpm) | 15-70 | 15-50 |
| Pitch (mm) | 7.0-94 | 9-138 |
| Max. Braiding dia. (mm) | 25 | 45 |
| Braiding wire diameter (mm) | 0.18-0.40 | 0.18-0.40 |
| Power and frequency | 4.0Kw, 50Hz | 5.5Kw, 50Hz |
| Main motor Voltage | 380V | 380V |
| Rotation speed (rpm) | 960 | 960 |
| Noise | <85 | <85 |
| Dimension (mm) | 173771535*2305 | 2195*1853*2545 |
| Net weight (kg) | 2500 | 3500 |
| Additional pay off and take up | Ø1250-Ø1800/ Ø1600 or Ø2000End-shaft type |
Frequently Asked Questions
Find answers to common questions about product selection, configuration and technical requirements.
Information required for quotation?
Intended product; material and input/output diameter; wire quantity, finished diameter, and required pitch; required speed; electrical supply and floor space.
How should the correct model be selected?
Match the required parameters to Section 4, then confirm the final configuration in a product-specific technical agreement.
Are optional or customized configurations included?
Only changes and optional devices expressly listed in the final technical proposal and supply scope are included.
Which values govern the final purchase?
Catalog data are transcribed from the supplied source; the signed technical agreement governs the final scope and values.
