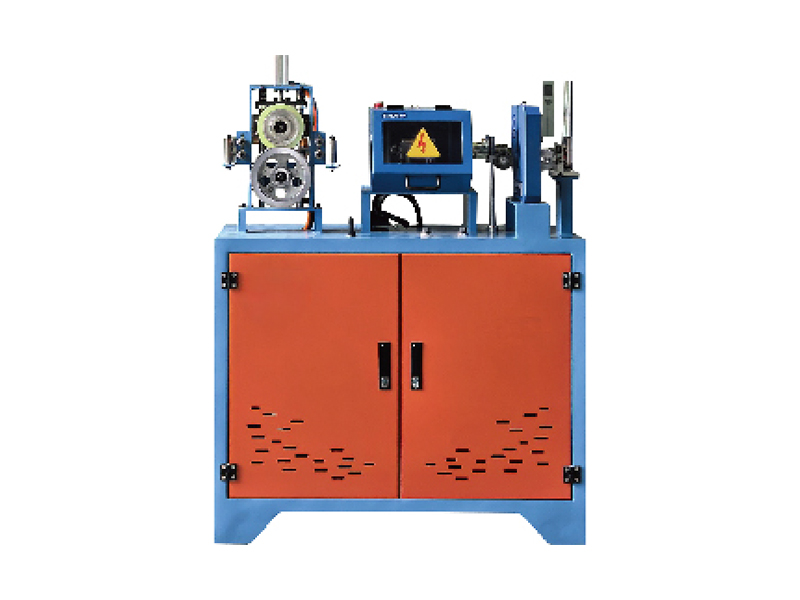

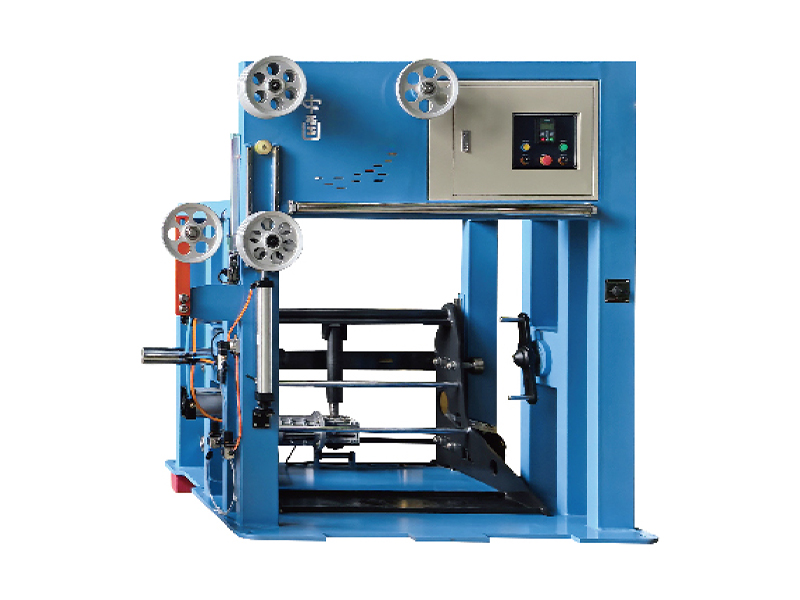

Dual Spool Auto Coiling Machine
This machine is for coiling wire on the small spool and wrap film around spool.
- Product Details
- Applications
- Technical Parameters
- RFQ & FAQ
Product Overview
This machine is for coiling wire on the small spool and wrap film around spool.
Structural Features And Configuration
Dual coiling heads.
Upon completion of coiling, it applies the film to the coil circumference to bind it securely.
With PLC and touch screen.

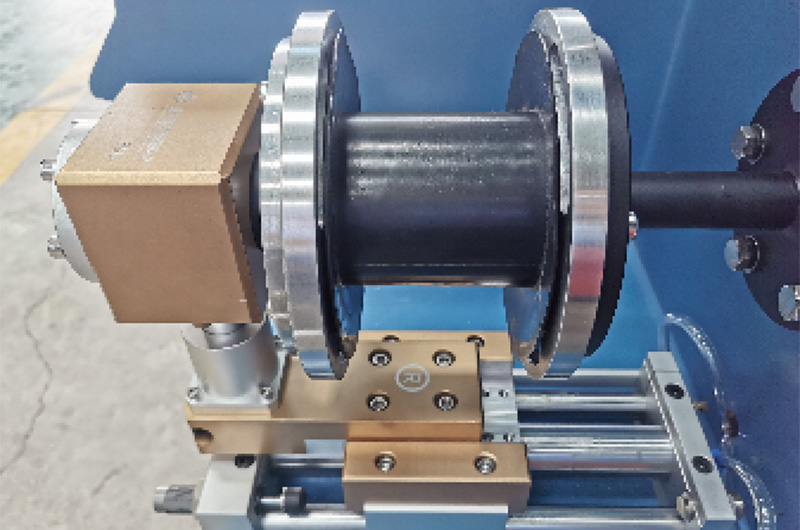

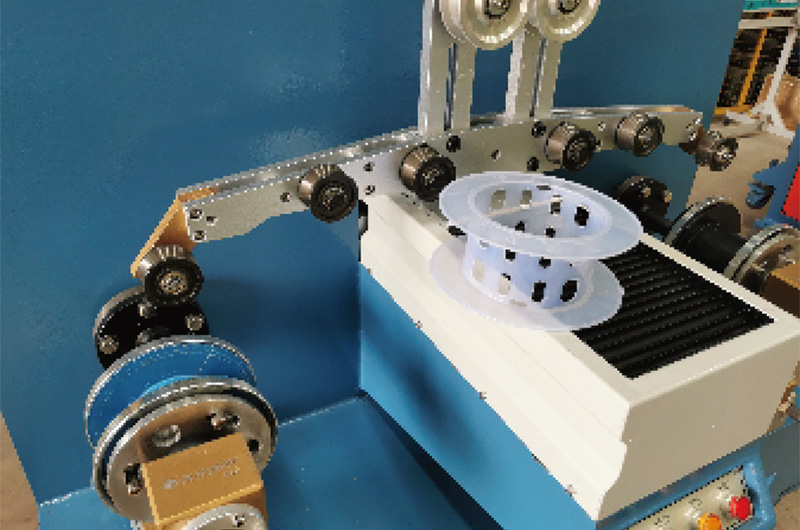

Product Images And Drawings
Applications And Process Scope
Designed to support a wide range of wire and cable processing requirements with flexible drive and tension configurations.
Automotive Wire
Technical Specifications
Technical data for the SP-320 planetary stranding machine models.
| Model | Wire Diameter | Bobbin size | Speed | PVC/PE/PP film thickness | PVC/PE/PP size |
|---|---|---|---|---|---|
| SP-320 | 2-8 mm | 200-320 mm | Max 800 RPM | 0.03-0.04 mm | Outer Dia.200 mm; Inner Dia.75 mm; |
Frequently Asked Questions
Find answers to common questions about product selection, configuration and technical requirements.
Information required for quotation?
Intended product; material and input/output diameter; wire quantity, finished diameter, and required pitch; required speed; electrical supply and floor space.
How should the correct model be selected?
Match the required parameters to Section 4, then confirm the final configuration in a product-specific technical agreement.
Are optional or customized configurations included?
Only changes and optional devices expressly listed in the final technical proposal and supply scope are included.
Which values govern the final purchase?
Catalog data are transcribed from the supplied source; the signed technical agreement governs the final scope and values.
