Double Bobbin Semi-auto Take Up
The machine is for winding wire and cable.
Model / Data Coverage
500-630mm, 630-800mm, 800-1000mm, 1000-1250mm
- Product Details
- RFQ & FAQ
Product Overview
The machine is for winding wire and cable.
Wire & Cable Winding Take-Up Equipment
Structural Features And Configuration
Option 01
Take up mode: The two take up shaft are equipped with a disk of automatic catcher. When the signal of changing reel is given, the traverse will move from the position of traversing to the position of another reel, and the two take up shaft will switch automatically under the condition that the production line is not stopped.
Option 02
Traversing mode: driven by servo motor + screw precision positioning, controlled by PLC, the width and distance can be called and set from the touch screen.
Option 03
Jacking way: pneumatic clamping and relaxing reel.
Option 04
Loading and unloading mode: manual control of electro-hydraulic lifting device, easy replacement, loading and unloading of full and empty reels.
Option 05
Control system: 7 inch touch screen +S7-1200PLC control, can be connected to the main control through PROFINET communication mode, control meter counting, traversing, take up wire, reel change and other all actions; The touch screen operation interface is placed on the front of the take up, easy to operate, can be preset reel length, traversing space, reel selection, product defect alarm, etc., related parameters can be called, stored and modified.

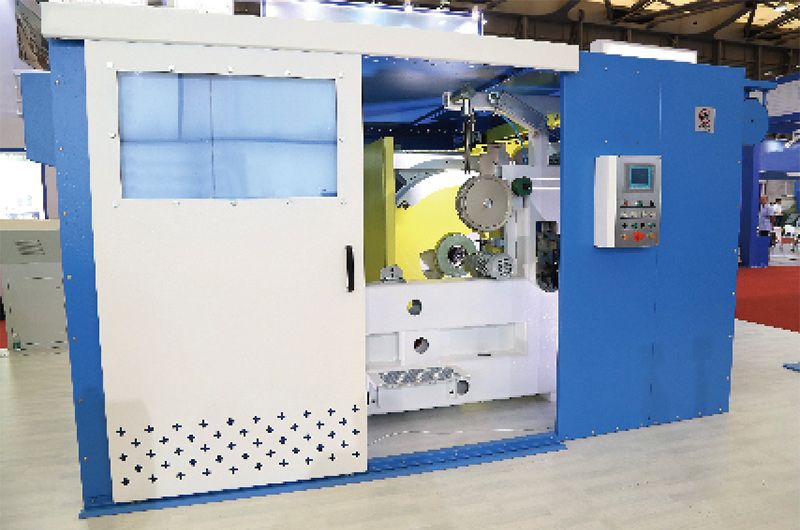

Product Images And Drawings
Frequently Asked Questions
Find answers to common questions about product selection, configuration and technical requirements.
Information required for quotation?
Intended product; material and input/output diameter; wire quantity, finished diameter, and required pitch; required speed; electrical supply and floor space.
How should the correct model be selected?
Match the required parameters, then confirm the final configuration in a product-specific technical agreement.
Are optional or customized configurations included?
Only changes and optional devices expressly listed in the final technical proposal and supply scope are included.
Which values govern the final purchase?
Catalog data are transcribed from the supplied source; the signed technical agreement governs the final scope and values.
