Copper Upward Continuous Casting Line
The machine is used for producing the big length bright oxygen-free copper rod.
- Product Details
- Applications
- Technical Parameters
- RFQ & FAQ
Product Overview
The machine is used for producing the big length bright oxygen-free copper rod.
Structural Features And Configuration
Multi-chamber or integrated furnace body: A composite or dual/triple furnace integrated structure combining melting, holding, and even liquid storage is commonly adopted to ensure stable copper liquid temperature.
Physical covering for oxidation prevention: The surface of the copper liquid is typically covered with charcoal or graphite flakes to isolate it from air and prevent oxidation.

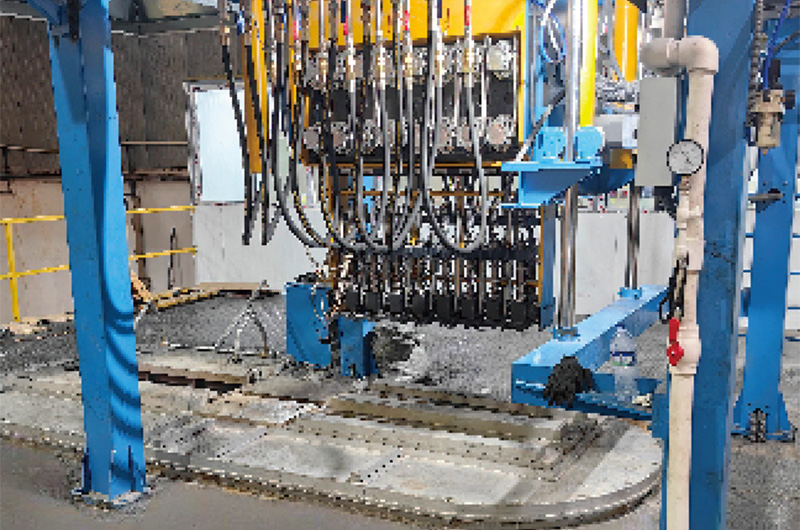

Vertical upward crystalline traction: The crystallizer is placed close to the liquid surface, and the copper rod solidifies vertically upward from bottom to top while being intermittently pulled out by a servo motor, resulting in a compact process.

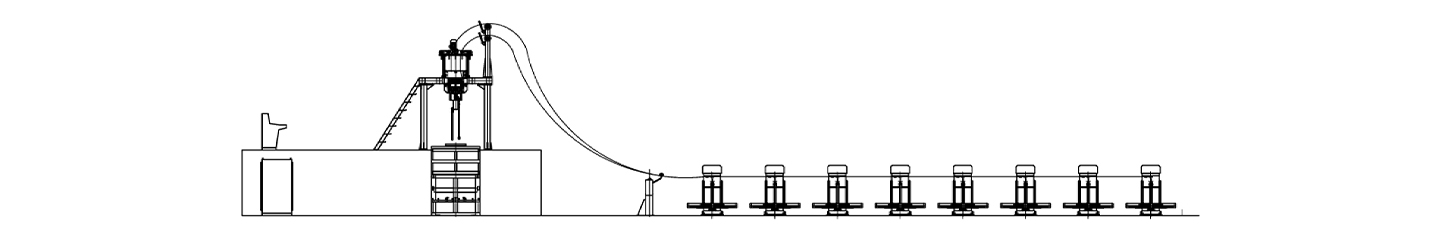

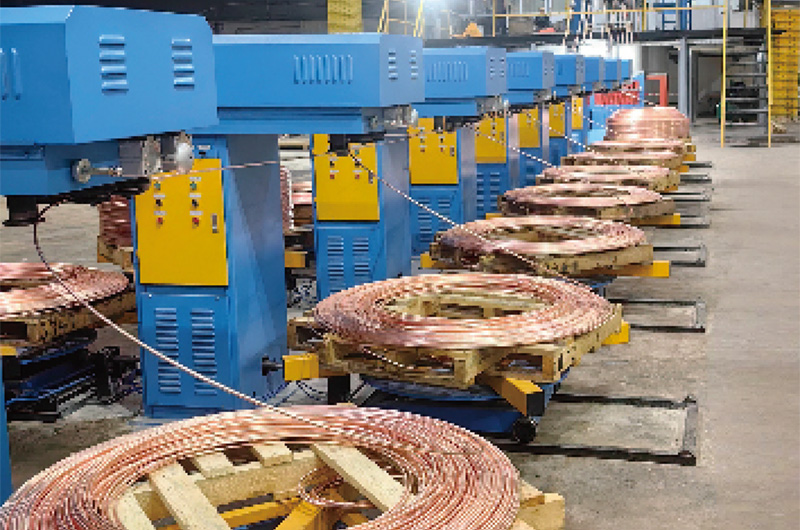

Product Images And Drawings
Applications And Process Scope
Designed to support a wide range of wire and cable processing requirements with flexible drive and tension configurations.

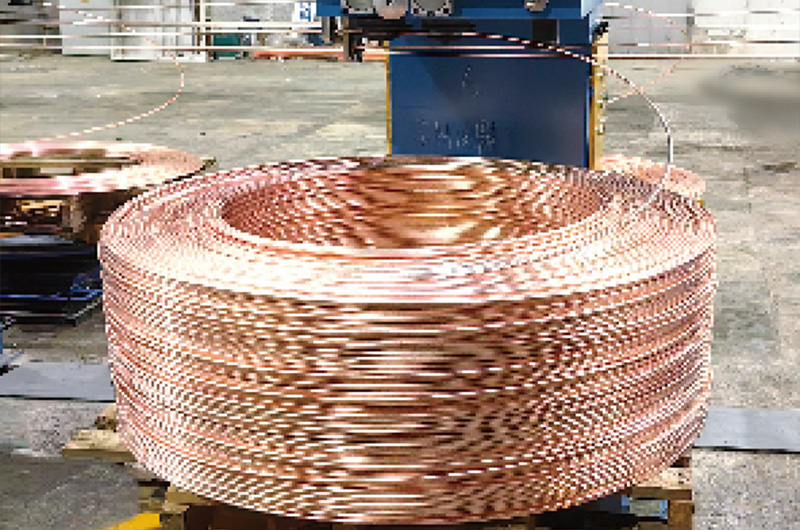

Oxygen-free copper rods with diameter 8mm, 12.5mm, 16mm or 20mm.
Technical Specifications
Technical data for the SL16-QG-S-B-8/20, SL20-QLWB-S-B-8/20 planetary stranding machine models.
| Model | SL16-QG-S-B-8/20 | SL20-QLWB-S-B-8/20 |
|---|---|---|
| Annual output | 8,000 tons/year; 18 tons/day | 10,000 tons/year |
| Furnace structure | QG model combined furnace (1 Melting; 1 Transition; 1 Holding chamber) | QLWB model combined furnace (1 Melting; 1 Transition; 1 Holding chamber) |
| Quantity of rod leading wires | 16 | 20 |
| Rod dia. (mm) | 08/012.5/016/020 | 08/012.5/016/020 |
| Rod leading speed (mm/min) | 0-2800 | 0-2800 |
| Pitch (mm) | 3-6 (adjustable) | 3-6 (adjustable) |
| Annual working time (h) | 7920 | 7920 |
| Finished coil size (mm) | 1 700*Ø900*800 | 1700*Ø900*800 |
| The installed power (KVA) | 600 | 750 |
| Melting capacity (t/h) | 1.2 | 1.30 |
| Max. Operating power (kw) | 410~415 | 550-555 |
Frequently Asked Questions
Find answers to common questions about product selection, configuration and technical requirements.
Information required for quotation?
Intended product; material and input/output diameter; wire quantity, finished diameter, and required pitch; required speed; electrical supply and floor space.
How should the correct model be selected?
Match the required parameters to Section 5, then confirm the final configuration in a product-specific technical agreement.
Are optional or customized configurations included?
Only changes and optional devices expressly listed in the final technical proposal and supply scope are included.
Which values govern the final purchase?
Catalog data are transcribed from the supplied source; the signed technical agreement governs the final scope and values.
