Copper Continuous Extrusion Machine
The machine is designed to produce copper flat wire, copper busbar.
- Product Details
- Applications
- Technical Parameters
- RFQ & FAQ
Product Overview
The machine is designed to produce copper flat wire, copper busbar.
Structural Features And Configuration
The operation section consists of compaction roller, extrusion wheel, cavity and stock guide. There is a annular groove around the extrusion wheel. The sectional dimension and shape of the product depends upon the die. The products of different specifications can be produced through simple change of dies.

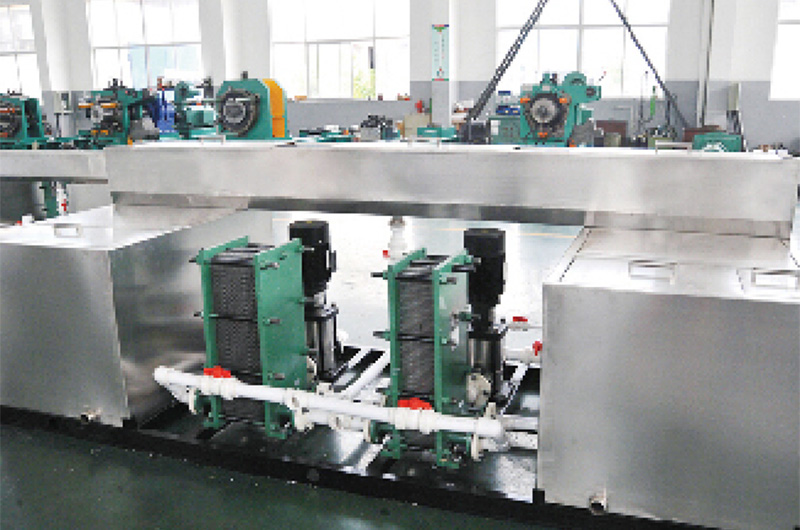

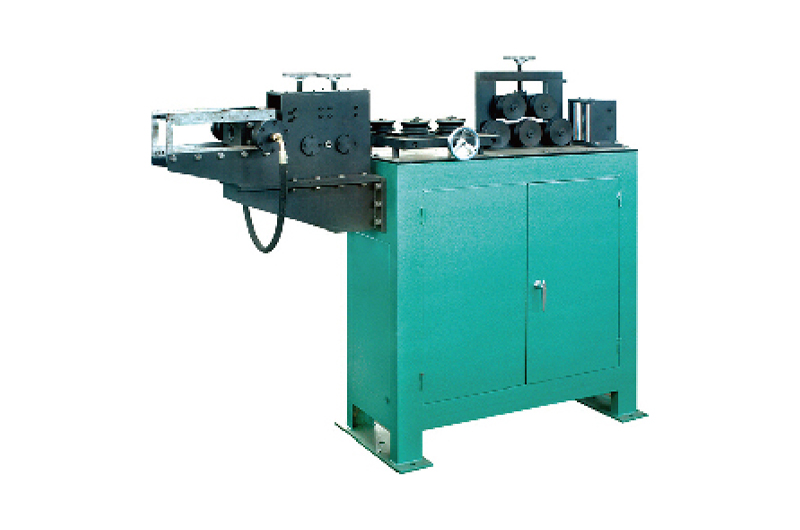

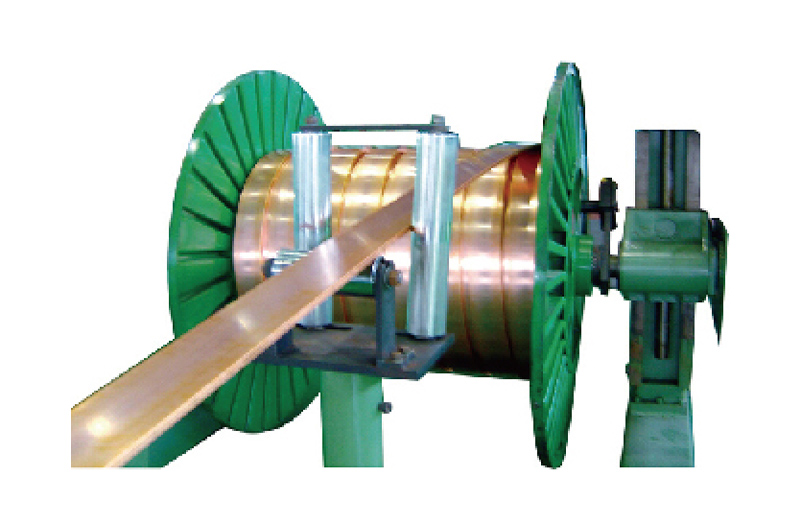

Product Images And Drawings
Applications And Process Scope
Designed to support a wide range of wire and cable processing requirements with flexible drive and tension configurations.
Copper busbars: Flat copper strips used in transformers, high/low voltage switchgears, and power distribution cabinets.
Technical Specifications
Technical data for the TBJ300, TBJ350, TBJ400, TBJ550, TBJ650 planetary stranding machine models.
| Type | TBJ300 | TBJ350 | TBJ400 | TBJ550 | TBJ650 |
|---|---|---|---|---|---|
| Nominal dia. of extrusion wheel (mm) | 300 | 350 | 400 | 550 | 650 |
| Power of main motor (kw) | 90 | 180 | 250 | 450 | 650 |
| Rotation speed of extruder (rpm) | 4-12.5 | 4-12.5 | 4-12.5 | 3-8 | 3-8 |
| Type | No oxygen up-casting copper rod | ||||
| Diameter of wire rod (mm) | 12.5±0.2 | 16 or 17 | 20 | 25 | 30 |
| Max. Width of the product (mm) | 50 | Copper busbar 100, Copper bar 45 | Copper busbar 170, Copper bar 80 | Copper busbar 260, Copper bar 120 | Copper busbar 350, Copper bar 140 |
| Sectional area of the product (mm²) | 6-300 | 80-1000 | 200-1600 | 300-4500 | 300-5500 |
| Average productivity (kg/h) | 450 | 700 | 1200 | 1800 | 2500 |
| Overflow rate (%) | 1-3 | 2-3 | 2-3 | ≤5 | ≤5 |
Frequently Asked Questions
Find answers to common questions about product selection, configuration and technical requirements.
Information required for quotation?
Intended product; material and input/output diameter; wire quantity, finished diameter, and required pitch; required speed; electrical supply and floor space.
How should the correct model be selected?
Match the required parameters, then confirm the final configuration in a product-specific technical agreement.
Are optional or customized configurations included?
Only changes and optional devices expressly listed in the final technical proposal and supply scope are included.
Which values govern the final purchase?
Catalog data are transcribed from the supplied source; the signed technical agreement governs the final scope and values.
