Computerized Auto Packing Machine
The machine is for packing building wire.
- Product Details
- Applications
- Technical Parameters
- RFQ & FAQ
Product Overview
The machine is for packing building wire.
Structural Features And Configuration
Traverse device: servo motor is applied, synchronizing with the main machine.
Loading mode of glue film coil: pneumatic clamp.
With PLC and touch screen.

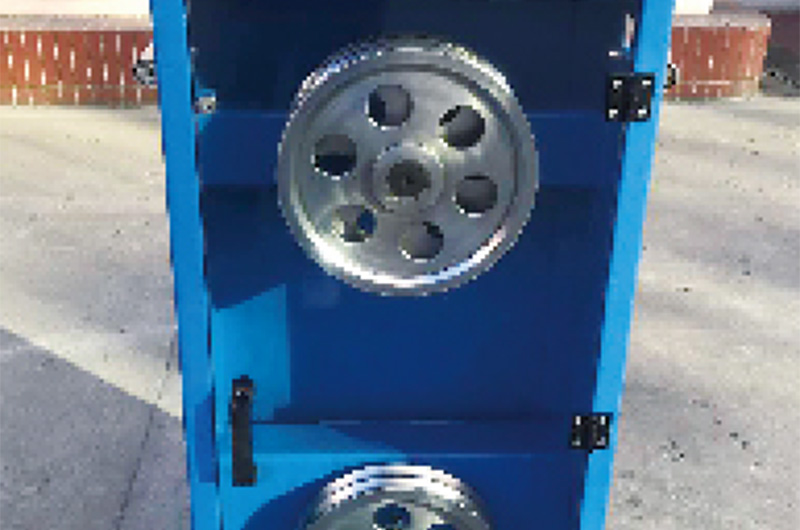

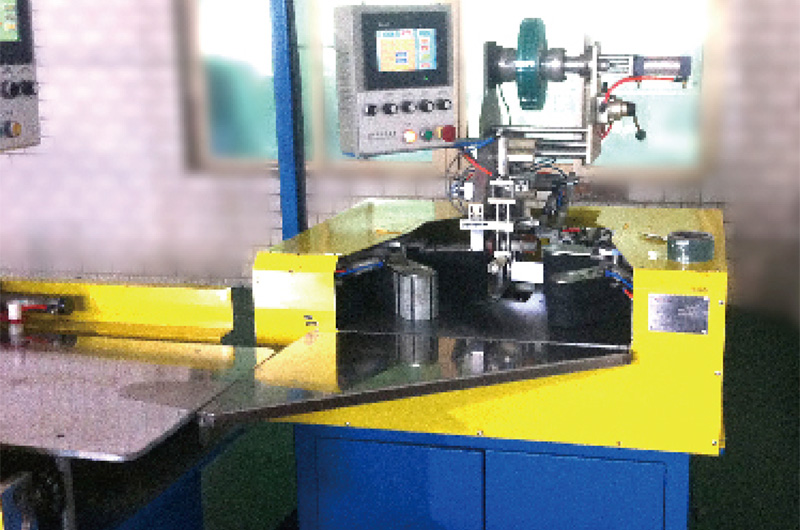

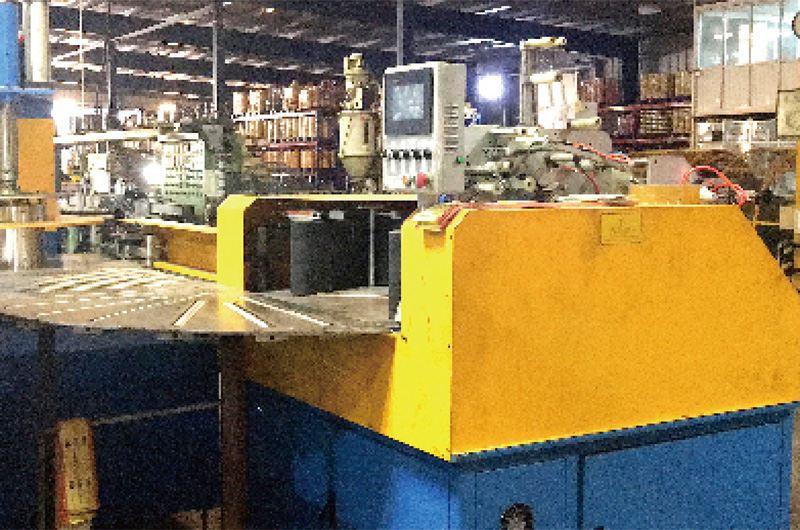

Product Images And Drawings
Applications And Process Scope
Designed to support a wide range of wire and cable processing requirements with flexible drive and tension configurations.
Building wire
Technical Specifications
Technical data for the P100, P120, P140, P180, P210 planetary stranding machine models.
| Model | Outer dia. (mm) | Inner dia. (mm) | Height (mm) | Max. Coil weight (kg) | Packing material | Material thickness (mm) | Material width (mm) |
|---|---|---|---|---|---|---|---|
| P100 | (mm) 220-460 | (mm) 120 | (mm) 50-100 | weight (kg) 15 | material PVC/PE/PP | (mm) 0.04-0.07 | (mm) 30-40 |
| P120 | 220-460 | 140 | 70-120 | 20 | PVC/PE/PP | 0.04-0.07 | 40-50 |
| P140 | 300-600 | 180 | 70-140 | 35 | PVC/PE/PP | 0.04-0.07 | 60-70 |
| P180 | 320-600 | 200 | 90-180 | 80 | PVC/PE/PP | 0.04-0.07 | 60-80 |
| P210 | 400-800 | 250 | 100-210 | 100 | PVC/PE/PP | 0.04-0.07 | 80-100 |
Frequently Asked Questions
Find answers to common questions about product selection, configuration and technical requirements.
Information required for quotation?
Intended product; material and input/output diameter; wire quantity, finished diameter, and required pitch; required speed; electrical supply and floor space.
How should the correct model be selected?
Match the required parameters to Section 5, then confirm the final configuration in a product-specific technical agreement.
Are optional or customized configurations included?
Only changes and optional devices expressly listed in the final technical proposal and supply scope are included.
Which values govern the final purchase?
Catalog data are transcribed from the supplied source; the signed technical agreement governs the final scope and values.
