Coiling and Packaging All-in-one Machine
The machine is for coiling and packing building wire.
- Product Details
- Applications
- Technical Parameters
- RFQ & FAQ
Product Overview
The machine is for coiling and packing building wire.
Structural Features And Configuration
Traverse device: servo motor is applied, synchronizing with the main machine.
With contact points for spark tester and diameter gauge.
Double cutter is made of SKD-11 special steel and though vacuum heat treatment, the hardness is higher and has longer life.
After the wire coiling is finished, the hold wire mechanism will be tight hold the coil, automatic transferred to the packaging platform.

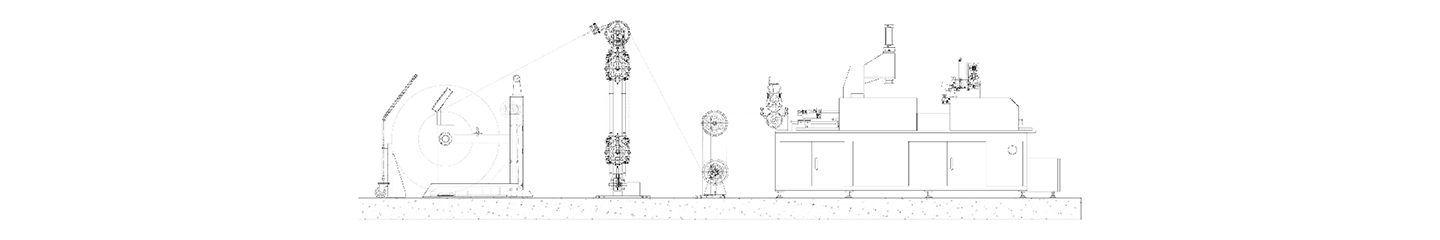

Product Images And Drawings
Applications And Process Scope
Designed to support a wide range of wire and cable processing requirements with flexible drive and tension configurations.
Building wire
Technical Specifications
Technical data for the YT400, YT600 planetary stranding machine models.

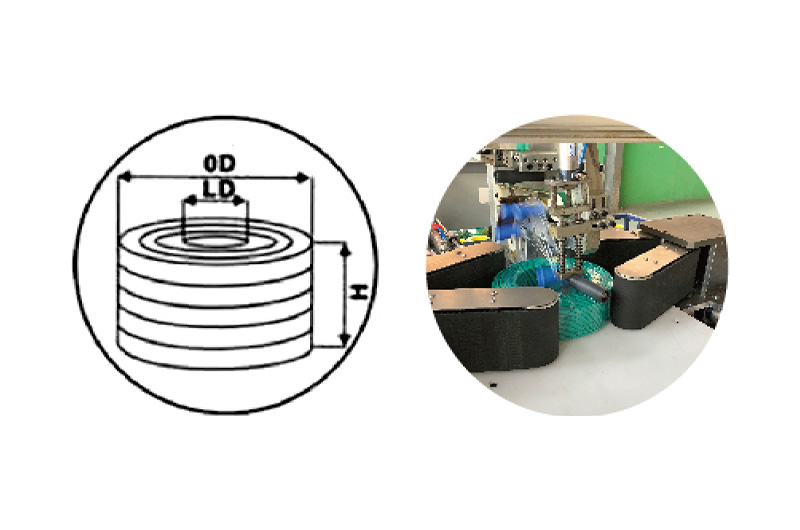

| Model | Outer dia.(mm) | Inner dia.(mm) | Height(mm) | Wire dia.(mm) | Packing Material | Coiling speed(coils/min) |
|---|---|---|---|---|---|---|
| YT400 | 180-400 | 120-200 | 50-100 | 3-8 | PVC/PE/PP | 2-2.5 |
| YT600 | 280-600 | 180-250 | 80-180 | 6-15 | PVC/PE/PP | 1-1.5 |
Frequently Asked Questions
Find answers to common questions about product selection, configuration and technical requirements.
Information required for quotation?
Intended product; material and input/output diameter; wire quantity, finished diameter, and required pitch; required speed; electrical supply and floor space.
How should the correct model be selected?
Match the required parameters to Section 5, then confirm the final configuration in a product-specific technical agreement.
Are optional or customized configurations included?
Only changes and optional devices expressly listed in the final technical proposal and supply scope are included.
Which values govern the final purchase?
Catalog data are transcribed from the supplied source; the signed technical agreement governs the final scope and values.
