Bunching Machine
Bunching of single wire or multi-strand like bare copper wire, tinned wire, enameled wire, copper clad aluminum, etc..
- Product Details
- Applications
- Technical Parameters
- RFQ & FAQ
Product Overview
Bunching of single wire or multi-strand like bare copper wire, tinned wire, enameled wire, copper clad aluminum, etc..
Structural Features And Configuration
High Efficiency & High Speed: The spindle operates at high rotational speed, enabling fast and consistent bunching of multiple individual wires.
Automatic Tension Control: The take-up tension is automatically tracked and adjusted as the reel from empty to full, ensuring uniform tension across the entire spool without stopping the machine.
Lubrication: Grease lubrication combined with natural circulation cooling is adopted, effectively extending the service life of the main spindle bearings.
Simple & Safe Operation: Equipped with reel loading/unloading devices, the machine significantly reduces labor costs while ensuring stable and reliable operation.

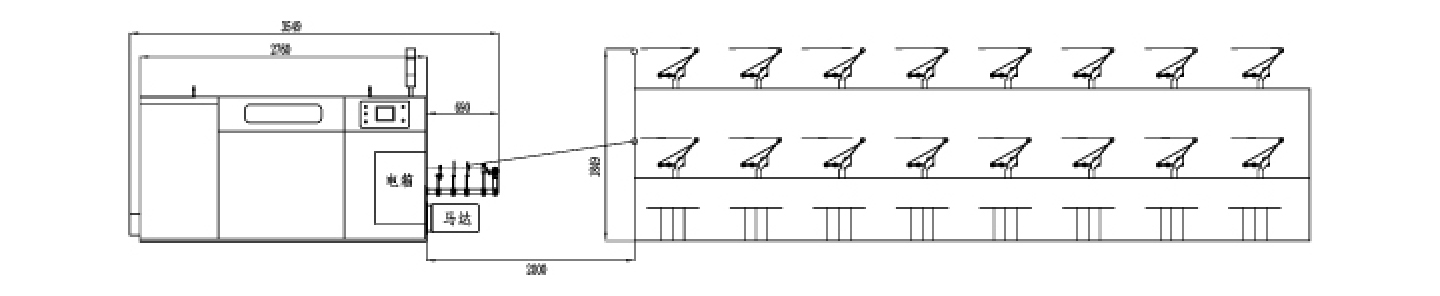

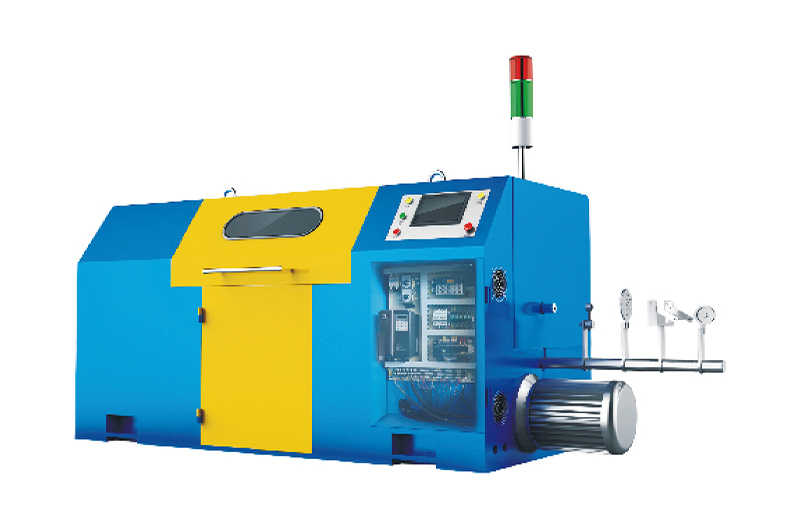

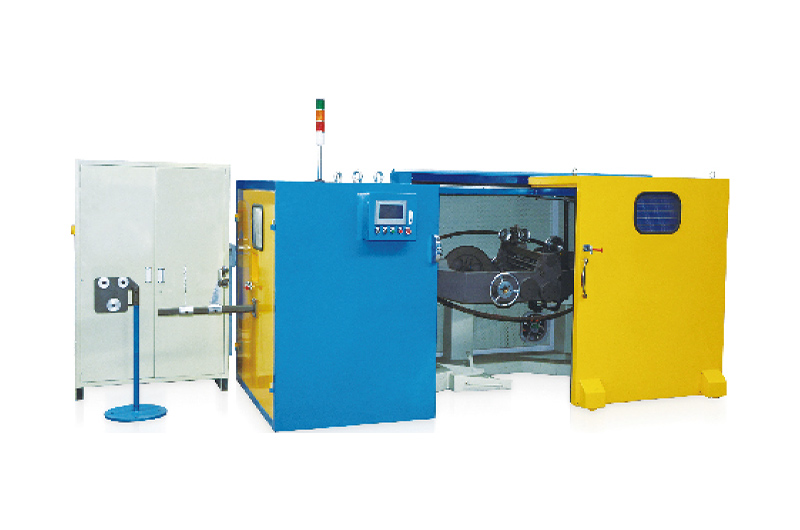

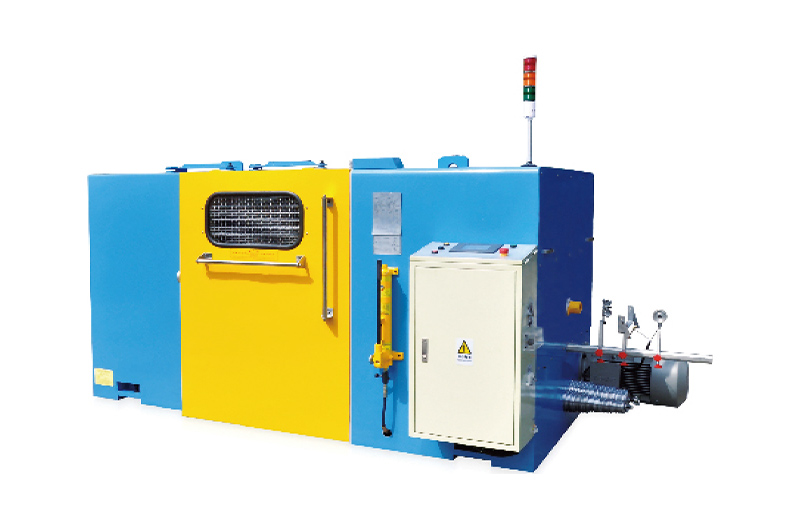

Product Images And Drawings
Applications And Process Scope
Designed to support a wide range of wire and cable processing requirements with flexible drive and tension configurations.
Bunching of single wire or multi-strand like bare copper wire, tinned wire, enameled wire, copper clad aluminum, etc.
Technical Specifications
Technical data for the 500B, 630C, 630B, 630C.D, 800B, 800C.D, DTE-1000CA, DTE-1250CA planetary stranding machine models.
| Model | 500A | 500B | 630C | 630B | 630P | 800B |
|---|---|---|---|---|---|---|
| Bobbin size (OD*TL)(mm) | 500*320 | 500*375 | 630*475 | 630*475 | 630*475 | 800*600 |
| Max. Bunched cross section (mm²) | 2.5 | 2.0 | 6 | 6 | 6 | 16 |
| Bunching wire diameter (mm) | 0.08-0.32 | 0.08-0.32 | 0.23-0.64 | 0.15-0.68 | 0.15-0.64 | 0.38-1.04 |
| Pitch (mm) | 5.34-40.02 Adjusted by changing gear | 5.25-50.95 Adjusted by changing capstan wheel | 26.19-75 Adjusted by changing gear | 24.72-84.99 Adjusted by changing capstan wheel | 24.72-84.99 Adjusted by changing capstan wheel | 27.4-144.11 Adjusted by changing capstan wheel |
| Direction | "S" or "Z" | |||||
| Rotation speed of bow (rpm) | 0-3000 | 0-3000 | 0-1600 | 0-2000 | 0-2500 | 0-1200 |
| Main motor (kw) | 5.5 | 5.5 | 7.5 | 7.5 | 15 | 15 |
| Lifting way | Hydraulic type | |||||
| Take up tension control | Magnetic powder clutch | |||||
| Electrical control operation interface | Touch screen | |||||
| Model | DTE-1000CA | DTE-1250CA |
|---|---|---|
| Take up bobbin (mm) | 1000 | 1250 |
| Diameter after stranding (mm) | Max: 12 | Max: 16 |
| Diameter of core wire (mm) | Ø1.0-Ø4.0 | Ø1.0-Ø6.0 |
| Pitch (mm) | 50-256 | 50-360 |
| Cross-section of stranded wire (copper wire)(mm²) | 25 | 35 |
| Stranding direction | Left / Right | Left / Right |
| Drive Motor (kw) | 37 | 47 |
| Speed (rpm) | 500 (1000tpm) | 500 (1000tpm) |
| Take up tension | Servo motor | |
| Traction motor | Servo motor | |
| Load and unload bobbin | Hydraulic lifting | |
Frequently Asked Questions
Find answers to common questions about product selection, configuration and technical requirements.
Information required for quotation?
intended product; material and input/output diameter; wire quantity, finished diameter, and required pitch; required speed; electrical supply and floor space.
How should the correct model be selected?
Match the required parameters to Section 5, then confirm the final configuration in a product-specific technical agreement.
Are optional or customized configurations included?
Only changes and optional devices expressly listed in the final technical proposal and supply scope are included.
Which values govern the final purchase?
Catalog data are transcribed from the supplied source; the signed technical agreement governs the final scope and values.
