Bobbin

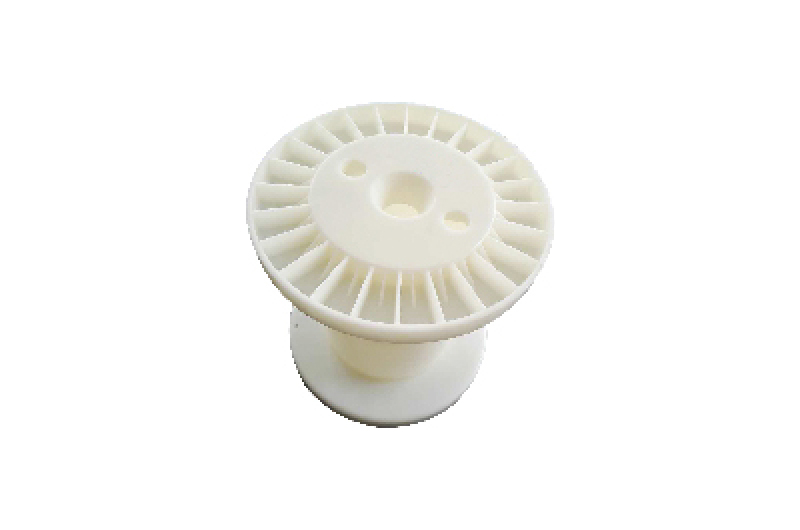

The bobbins are for rolling wire and cable.
- Product Details
- Technical Parameters
- RFQ & FAQ
Product Overview
The bobbins are for rolling wire and cable.

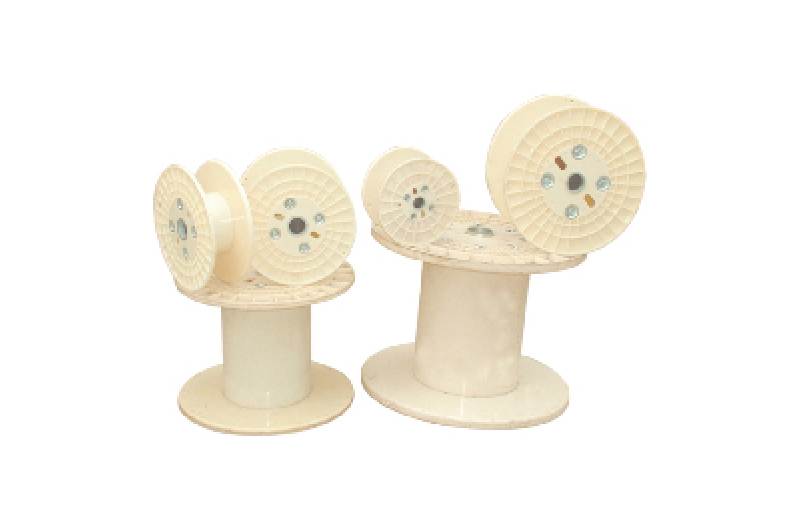

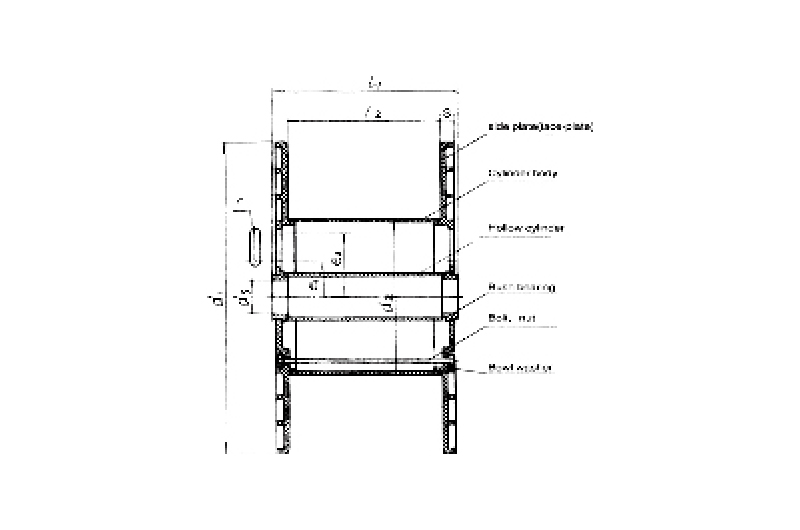

Product Images And Drawings
Technical Specifications
Technical data for the Customized planetary stranding machine models.
Specification Table 1
| Model | Material | Flange dia. (mm) | Thickness (mm) | Barrel dia. (mm) | Overall length (mm) | Inner width (mm) | Hole dia. (mm) | r (mm) | Eccentricity A | Eccentricity B |
|---|---|---|---|---|---|---|---|---|---|---|
| PN300 | PS | 300 | 15 | 140 | 180 | 150 | 40 | 7.0 | 30 | 50 |
| PN400 | ABS | 400 | 16 | 200 | 300 | 250 | 40-56 | 10 | 65 | 75 |
| PN400 | ABS | 400 | 16 | 200 | 300 | 250 | 55-56 | 10 | 65 | 75 |
| PN400 | ABS | 400 | 16 | 200 | 155 | 120 | 55-56 | 10 | 65 | 75 |
| PN500 | ABS | 500 | 20 | 250 | 300 | 250 | 56 | 12.5 | 70 | 93 |
| PN500 | ABS | 500 | 20 | 250 | 375 | 315 | 56 | 12.5 | 70 | 93 |
| PN500 | ABS | 500 | 25 | 250 | 250 | 250 | 56 | 10.5 | 66 | 76 |
| PN630 | ABS | 630 | 25 | 475 | 400 | 400 | 56 | 12 | 78 | 101 |
| PN630 | ABS | 630 | 25 | 375 | 315 | 315 | 12 | 78 | 101 | |
| PN630 | ABS | 630 | 25 | 475 | 415 | 415 | 56 | 12 | 78 | 101 |
| PN800 | ABS | 800 | 35 | 400 | 500 | 500 | 80 | 15 | 112 | 160 |
| PN1000 | ABS | 1000 | 35 | 500 | 630 | 630 | 80 | 14 |
Specification Table 2
| Model | d1 (mm) | d2 (mm) | d3 (mm) | d4 (mm) | d5 (mm) | e (mm) | L1 (mm) | L2 (mm) | L3 (mm) | a | VdM³ |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 400 | 400 | 160/200 | 71 | 36 | 8-16 | 112 | 300/236 | 250/200 | 15-20 | 60° | 26.3/18.8 |
| 500 | 500 | 200/250 | 112 | 56 | 16-28 | 140 | 375/300 | 315/250 | 15-20 | 60° | 51.9/36.8 |
| 560 | 560 | 224/280 | 112 | 56 | 16-28 | 140 | 425/335 | 355/280 | 15-20 | 60° | 73.4/53.7 |
| 630 | 630 | 250/315 | 112 | 56 | 16-28 | 140 | 475/375 | 400/315 | 15-20 | 60° | 105.1/72.5 |
| 700 | 710 | 355 | 160 | 80 | 28-40 | 160 | 530 | 450 | 20-40 | 60° | 133.6 |
| 800 | 800 | 400 | 160 | 80 | 28-40 | 160 | 600 | 500 | 20-40 | 60° | 188.5 |
| 1000 | 1000 | 500 | 160 | 80 | 28-40 | 160 | 750 | 630 | 20-40 | 60° | 371.1 |
| 1120 | 1120 | 560 | 160 | 80 | 28-40 | 160 | 850 | 710 | 20-40 | 60° | 524.6 |
| 1250 | 1250 | 630 | 160 | 80 | 28-40 | 160 | 950 | 800 | 20-40 | 60° | 732.4 |
| 1400 | 1400 | 710 | 160 | 80 | 65 | 300 | 1060 | 900 | 1029.1 | ||
| 1600 | 1600 | 800 | 160 | 80 | 65 | 300 | 1080 | 1000 | 1508.0 | ||
| 1800 | 1800 | 1000 | 200 | 100 | 65 | 300 | 1320 | 1120 | 1970.1 | ||
| 2000 | 2000 | 1120 | 65 | 300 | 1500 | 1250 | 2695.5 | ||||
| 2240 | 2240 | 1250 | 65 | 300 | 1700 | 1400 | 3799.1 | ||||
| 2500 | 2500 | 1500 | 65 | 300 | 1900 | 1600 | 5026.5 | ||||
| 2800 | 2800 | 1800 | 280 | 140 | 65 | 300 | 2120 | 1800 | 6503.1 | ||
| 3150 | 3150 | 1900 | 300 | 160 | 65 | 500 | 2300 | 2000 | 9915.6 |
Frequently Asked Questions
Find answers to common questions about product selection, configuration and technical requirements.
Information required for quotation?
Intended product; material and input/output diameter; wire quantity, finished diameter, and required pitch; required speed; electrical supply and floor space.
How should the correct model be selected?
Match the required parameters to Section 3, then confirm the final configuration in a product-specific technical agreement.
Are optional or customized configurations included?
Only changes and optional devices expressly listed in the final technical proposal and supply scope are included.
Which values govern the final purchase?
Catalog data are transcribed from the supplied source; the signed technical agreement governs the final scope and values.
