24/32/36/48 High-speed Horizontal Braiding Machine
The machine is specifically designed to handle large bobbins (up to 5kg) and thicker braiding wires (up to 0.40mm). This makes it the perfect solution for applying large size copper shielding.
- Product Details
- Applications
- Technical Parameters
- RFQ & FAQ
Product Overview
The machine is specifically designed to handle large bobbins (up to 5kg) and thicker braiding wires (up to 0.40mm). This makes it the perfect solution for applying large size copper shielding.
Structural Features And Configuration
Horizontal type
For 0.2-0.4mm braiding wire
Equipped with PLC and touch screen
Adopt caterpillar for traction of cable
Lubrication: Automatic lubricating system reduces wear on gears

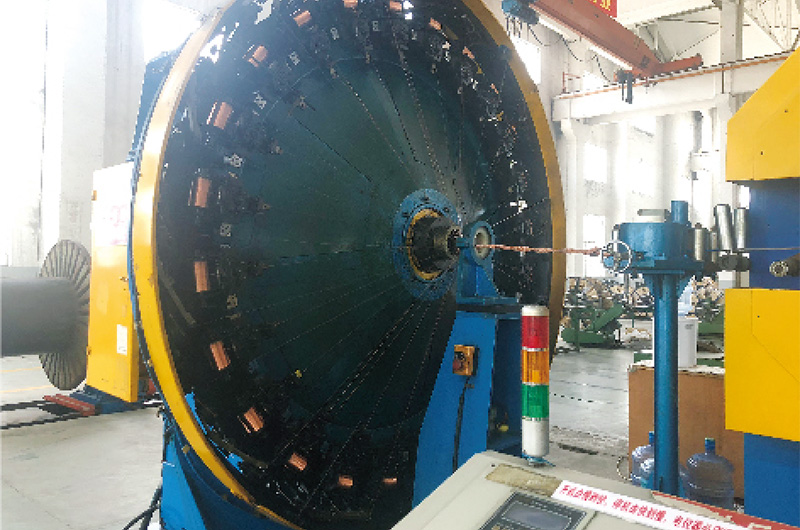

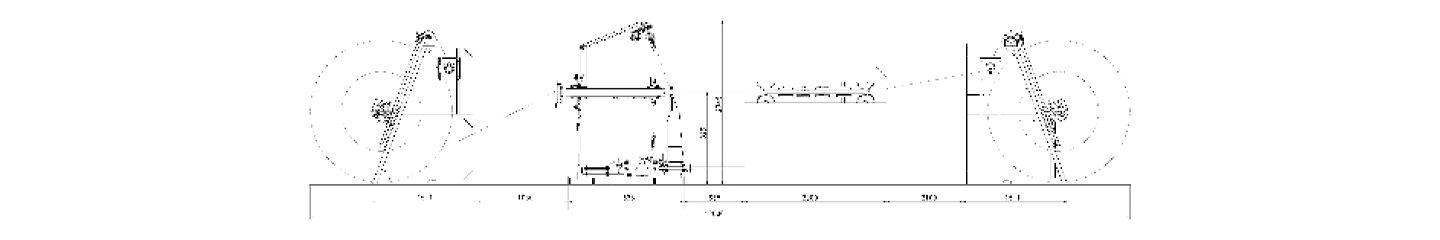

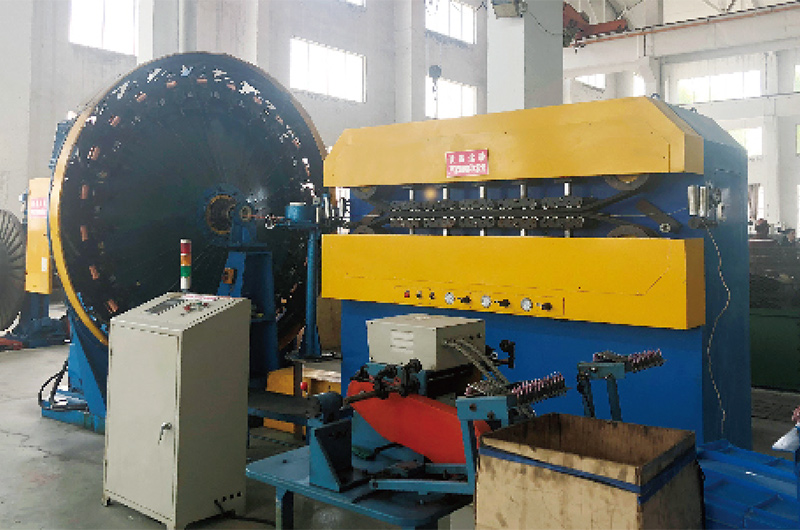

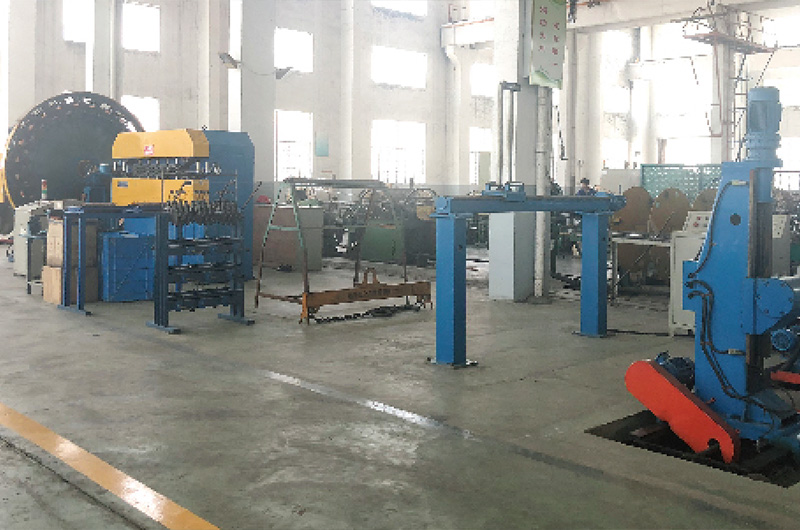

Product Images And Drawings
Applications And Process Scope
Designed to support a wide range of wire and cable processing requirements with flexible drive and tension configurations.
Large power cables: Copper shielding for large underground or submarine power cables.
Technical Specifications
Technical data for the 24 spindles, 32 spindles, 36 spindles, 48 spindles planetary stranding machine models.
| Model | 24 spindles | 32 spindles | 36 spindles | 48 spindles |
|---|---|---|---|---|
| Braiding way | 2 stack 2 | 2 stack 2 | 2 stack 2 | 2 stack 2 |
| Braiding direction | Horizontal | Horizontal | Horizontal | Horizontal |
| Number of spindles | 12 Inner, 12 outer | 16 Inner, 16 outer | 18 Inner, 18 outer | 24 Inner, 24 outer |
| Bobbin size for spindles | Ø110*Ø48*100*110 | Ø110*Ø48*100*110 | Ø110*Ø48*100*110 | Ø110*Ø48*100*110 |
| Rotation speed (rpm) | <50 | <32 | <32 | <22 |
| Braiding wire diameter (mm) | 0.18-0.4 | 0.18-0.4 | 0.18-0.4 | 0.18-0.4 |
| Pitch (mm) | 23.7-238.6/Stepless adjustment | 25-250/ Stepless adjustment | 25-250/Stepless adjustment | 35-380/ Stepless adjustment |
| Max. Braiding dia. (mm) | 45 | 75 | 85 | 115 |
| Max. Production speed (m/h) | 500 | 460 | 460 | 475 |
| Pay off and take up | Ø1600/ Ø2000 | 2000/ Ø2500 | 2000/ Ø2500 | Ø2000/ Ø2500 |
| Traction way | Caterpillar | Caterpillar | Caterpillar | Caterpillar |
| Motor power (kw) | 5.5 | 7.5 | 7.5 | 11 |
| Machine size (mm) | 1600*1560*1800 | 1750*2000*2400 | 1750*2000*2400 | 2200*2500*2850 |
Frequently Asked Questions
Find answers to common questions about product selection, configuration and technical requirements.
Information required for quotation?
Intended product; material and input/output diameter; wire quantity, finished diameter, and required pitch; required speed; electrical supply and floor space.
How should the correct model be selected?
Match the required parameters to Section 4, then confirm the final configuration in a product-specific technical agreement.
Are optional or customized configurations included?
Only changes and optional devices expressly listed in the final technical proposal and supply scope are included.
Which values govern the final purchase?
Catalog data are transcribed from the supplied source; the signed technical agreement governs the final scope and values.
