Light-proof Infusion Tube Extrusion Production Line

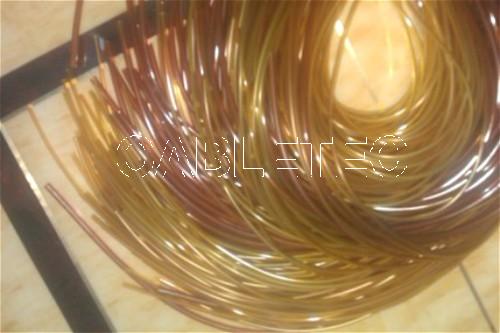

Light-proof infusion tube application:

It used in clinical medicine because its composition is unstable to light. If it is improperly operated during clinical use, it may undergo some degree of degradation and polymerization. The appearance may appear discolored, turbid, and the color deepens to sediment. Such changes, in this case, it is necessary to use light-proof infusion equipment, the company's two-layer extruder can produce such a light-proof infusion catheter

Applicable materials:

Inner layer PU, outer layer protected from light PVC

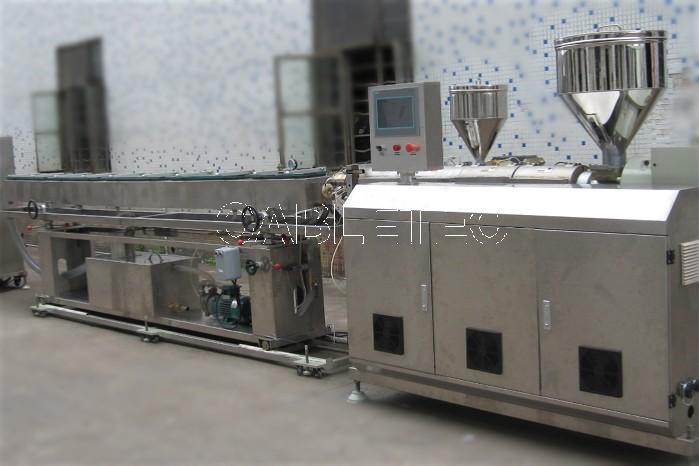

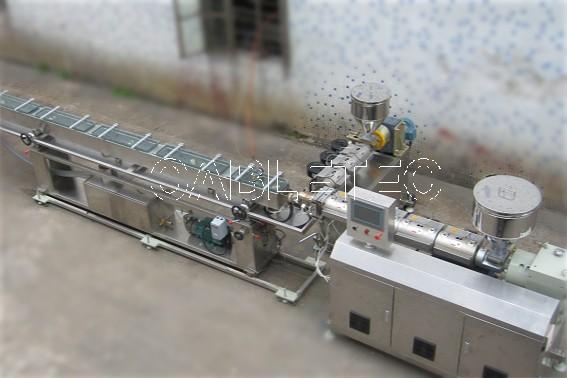

The equipment components

1. Precision extrusion φ45 main machine (Host)

2. Precision extrusion φ35 auxiliary machine (auxiliary machine for light protection layer)

3. High Precision crosshead mold

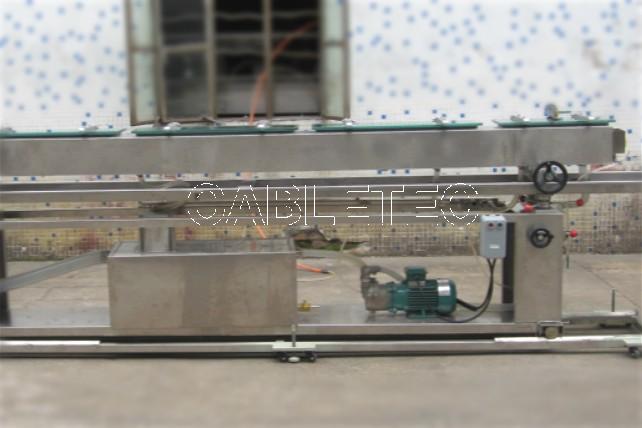

4. Fixed cooling water trough

5. Outer diameter calibrator

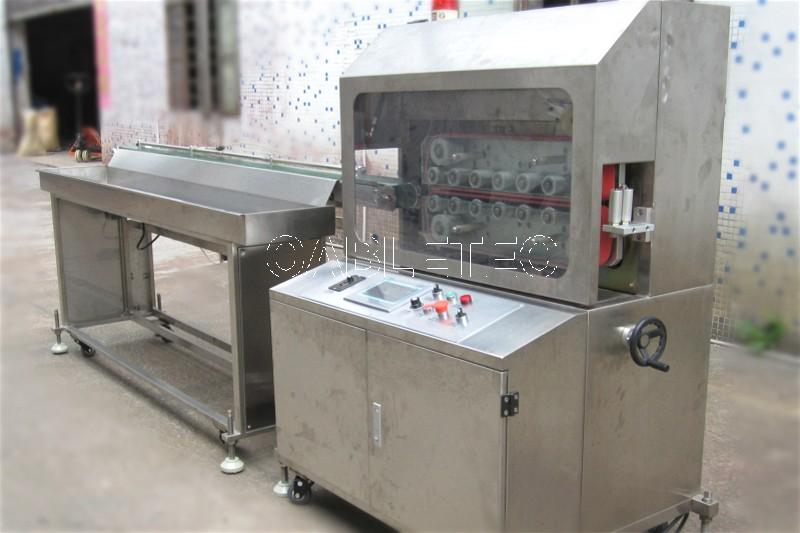

6. Precision traction cutting machine

7. Conveying collection tank

Equipment accuracy:

All components and units of the equipment meet clean room requirements; conduit diameter 1.2 – 8 mm, thickness tolerance +/- 0.03 mm
