Cabletec's 70+35 Extrusion Line Would Be A Best Option For New Factory
1. Main specification and performance
1). Application of the core conductor diameter: Φ1.0mm-Φ8.0mm
2). Complete external diameter: Φ1.5mm-Φ12.0mm
3). Extrusion volume: 150KG/HR (handpiece open, soft PVC material)
4). Extrude line speed: Max300M/Min (Depending on completion of the external diameter sure)
5). Machine center height:1000mm

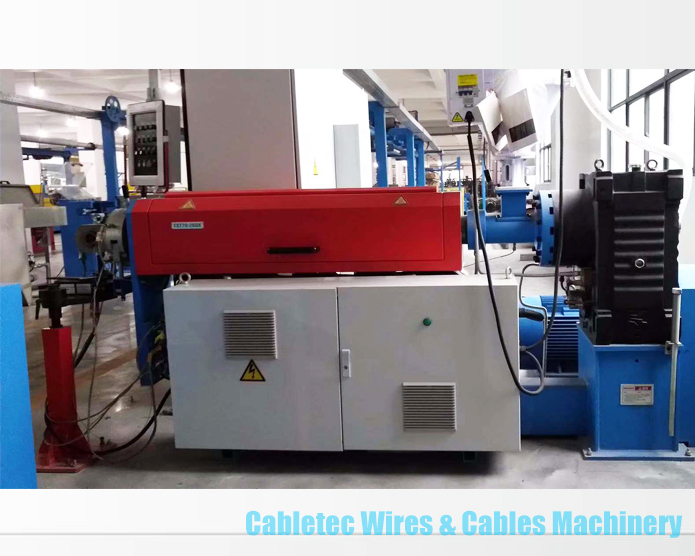

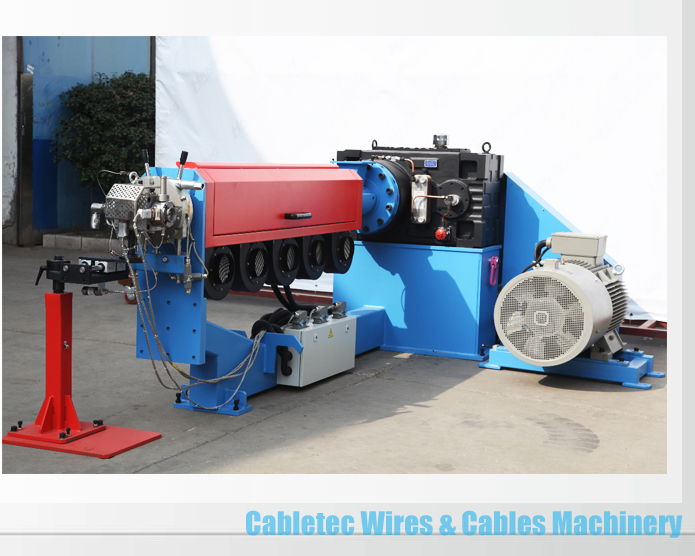

2. Φ70×25D Core
1). Power:22kw Variable-frequency motor+converter
2). Gear lubrication: Oil feed forcibly by gear;
3). Four-box-shape casting forming and annealing treatment, material HT200-300
4). Gear tooth surface to deal with high-frequency hardening, grinding teeth after processing, noise index 5). lower than 75 decibels
6). Diameter:Φ70mm,suitable for extrusion the PVC,PE,PP material;
7). Length-diameter ratio:25:1;
8.) Rev:10-110RPM;
9.) Material: 38CrMoAIA nitride treatment (Nitride depth:0.6) ;
10). Screw roughness:0.8
11). Suction feed machine: It mainly by the vacuum suction feed device, drying device, direct-loading device consists of three parts.
12). One-time feeding: 50Kg
13). Suction feed: Auto vacuum suction feed, when the material has not yet fully used up, this device automatically suction feed, hopper within filter device;
14). Drying: To adopt hot air automatic drying, the temperature can be set

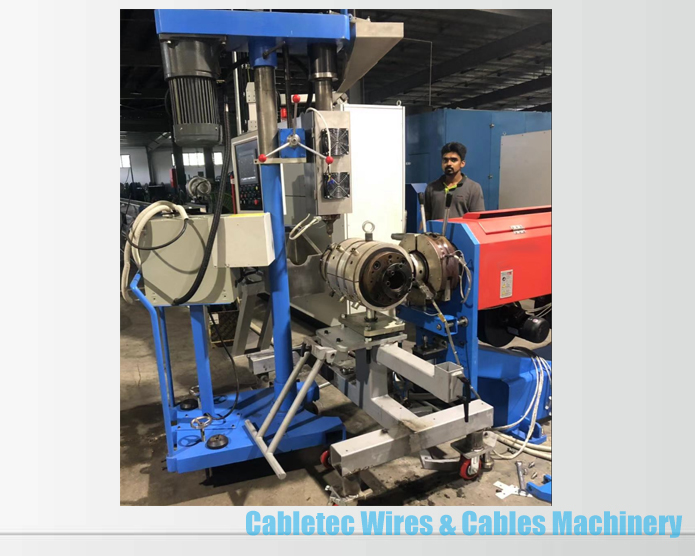

15). Crosshead: Manual centering crosshead(1 group),three crosshead temperature controlled ,for a crosshead , a die and a neck.
16). Crosshead using imported heat-resistant alloy steel production of anti-corrosion, oxidation, the surface of chrome-plated hardware.
3. Φ35mm Strip-injecting Machine: This small extruder is used together with extruder need to inject monochrome and double color plastic when produce wire.
1). Outer diameter of screw: Φ35mm;
2). L/D ratio: 1:18
3). Extrusion output: PVC material 10-16KG;
4). Speed of screw: 0-80RPM;
5). Roughness of screw: 0.8.
6.) Material of screw tube: 38CrMnALA, nitrogen treatment (Nitriding depth: 0.6);
7). Three-stage temperature control: Adjustment temperature range 1-399℃, precision ±1℃;
8). Equipped with stainless steel hopper device, feeding uniform, injection strip steady;
