High-speed Single Twisting Machine with Taping Are Testing Before Shippment

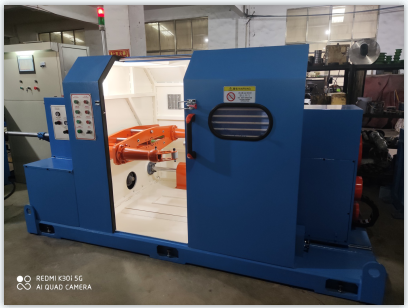

Our 630mm high-speed single twisting machine with taping are testing before shippment

1. Main parameters

1.1. Applicable core wire: Ø0.6-Ø3.0mm (field wire)

1.2. For hard structure: less than 6mm²

1.3.Twisting outer diameter: MAX Ø15mm

1.4.Range of cable lay: 20mm-200mm stepless regulation

1.5. Take-up bobbin diameter: Ø630mm (size provided by Handing)

1.6. Tape pad: Diameter: Φ500mm, width: 8-30mm

1.7. Using materials: Carton paper, Mylar tape, Aluminum foil

1.8. Taping speed: Max 1800rpm

1.9. Twisting speed: dynamic balance: 900rpm, working speed: 750rpm

2.Applicable:

This machine set is applicable to the high-speed cable forming and twisting of all kinds of power cords, PVC and PE cables, Category 5, 6data cables, telecommunication cables, and other special-purpose wires and cables. It can also be used for central taping and side taping.
