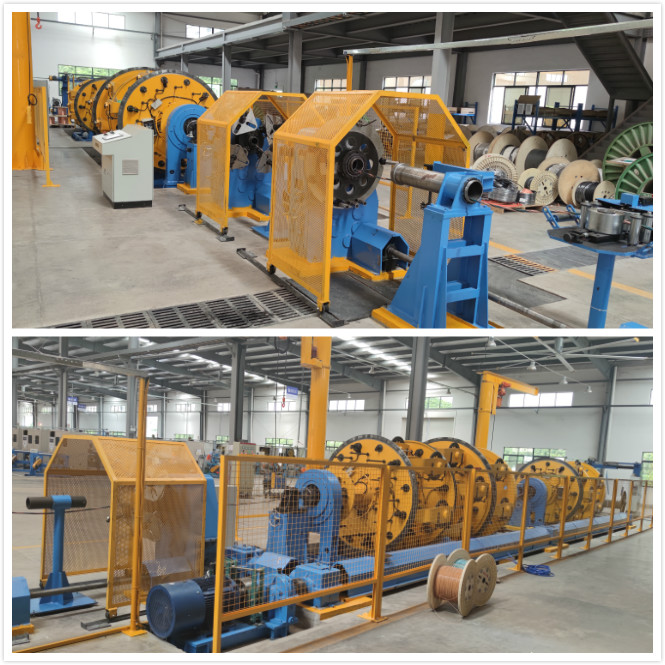

630 mm(12+18) cabling laying up machine at client's site
Φ630/12+18 cages planetary stranding machine
1. Technical performance of the equipment
This machine is mainly used to control cable cabling. Through gear back-twisting system, make 100% back twist of single wires
2. Equipment composition
2.1. Φ1000-1600mm Pay off without shaft 1 set
2.2. PND630mm pay off 1 set
2.3. 630/12Cage 1 set
2.4. 630/18 Cage 1 set
2.5. Die holder 4 sets
2.6. Vertical meter countr 1 set
2.7. Φ400/4 high speed taping machine 1 set
2.8. Φ2000mm Double wheels capstan 1 set
2.9. Safety guard 1 set
2.10. Φ1250-2500mm Take up without shaft 1 set
2.11. Electric controlling center 1 set
If you're interested, pls feel free to get a quote via:
