Technical performance of the equipment

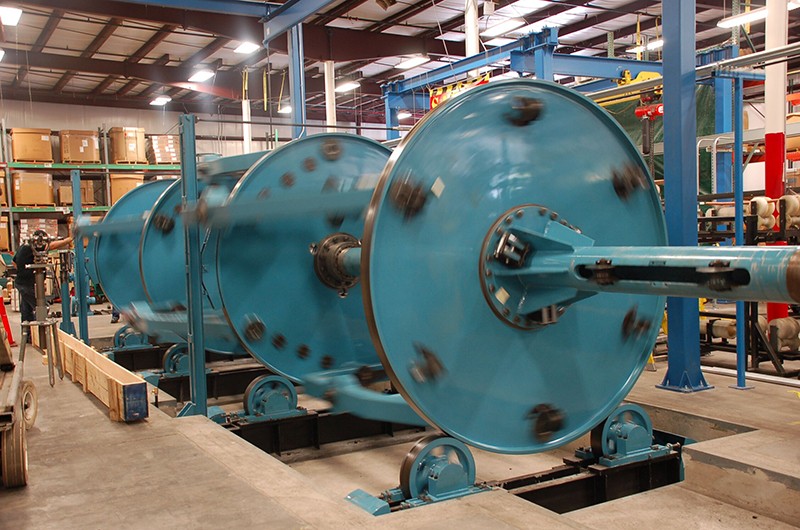

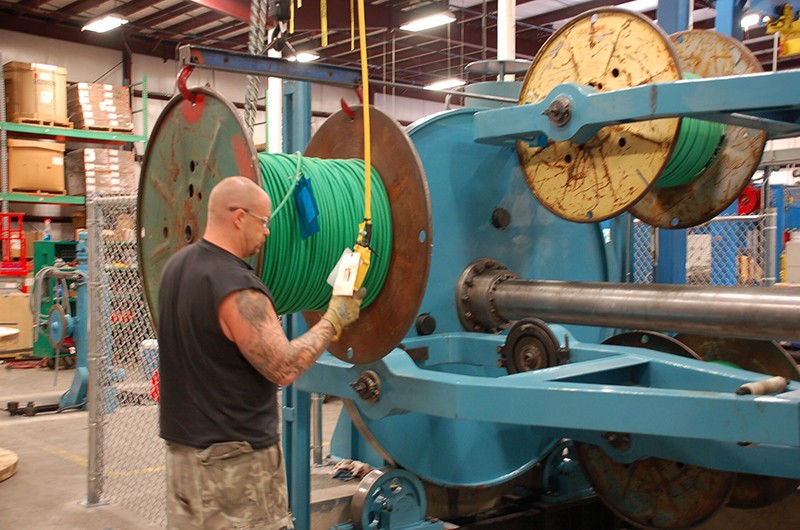

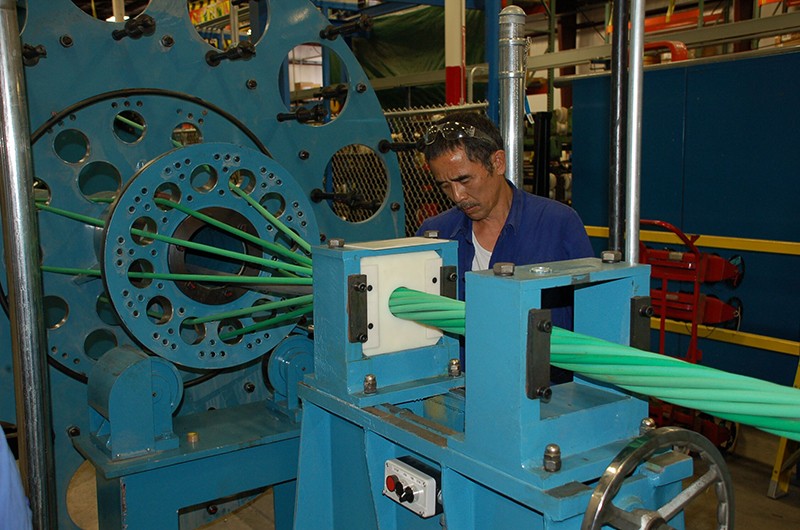

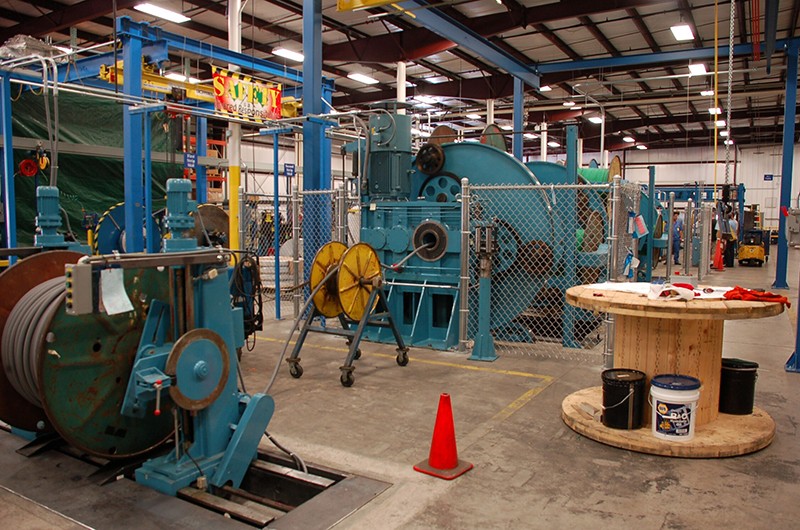

1250 Laying-up machine is specially designed for power cables or paper-insulated power cables of various specifications with a twisted wire core section of 16-300mm². The stranded cable can be a circular or fan-shaped cable. All bobbin frames can be pre-twisted. The bobbin reversal is driven by the gear return mechanism installed on the twisting cage. The reversal angle of each bobbin frame can be adjusted separately according to the process requirements. The bobbin frame is a lip-shaped cross-section structure. When not twisted, the bobbin has the best bending strength in a vertical position. The clamping and loosening of the ejector pin is operated by an electric wrench.

The cage is equipped with a brake device.

2. Technical data:

1).Single cable section: 16-300 mm2

2). Single wire diameter: Φ8-35mm

3). Rotation speed of cage: 11-25 rpm(6-level speed shift)

4). Laying pitch: 169-2823mm

5). Taping rotation speed: 166-387 rpm (6-level speed shift)

6). Taping pitch: 11-187 mm

7). Max traction: 25KN(Caterpillar type)

8). Wire outlet speed: 4.23-31.08m/min

9). Power of main motor: 30 kW (AC)

10). Payoff bobbin in cage: PN1250( Customer provides bobbin drawing)

11). Twisted cable diameter: Φ80mm

12). Machine center height: 1000mm
