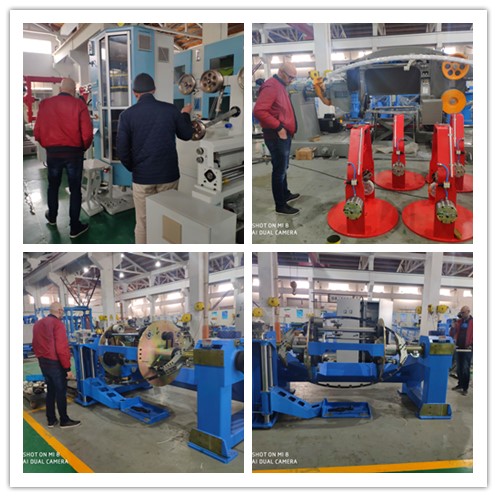

Factory visit for 1250 mm double twist buncher
Dec 23, 2019|
View:512Ф1250mm D type double twist stranding machine
(Double bows)
1. Introduction
This equipment is dedicated to twist aluminum and copper round compress conductor.This project contains a external rotation pressure die structure, and provide the required traction used for compress conductor, when the conductor compress, the take-up part of bundling machine will obtain, and have a special line way to reduce torque between rotating traction wheel and take-up bobbin, can ensure that there is a good round conductor.
2. Purpose
This machine is suitable for stranding copper wire,PVC wire,Al wire and below 7 stands conductor, mainly used for sectional area for copper 50 mm2,AL 70mm2.
3. Equipment composition
No. | Description | Brand | Qty. | Unit | Function | Remark |
1 | Wire inlet device | Cabletec | 1 | PC | Wire collection | |
2 | Tension balance | Cabletec | 1 | Set | Balance tension | |
3 | 1250mm double twist stranding machine | Cabletec | 1 | Set | Wire stranding | |
4 | Rotation die stand | Cabletec | 1 | Set | Conductor compact | |
5 | PLC type main electric cabinet | Cabletec | 1 | Set | System control | |
6 | Mold | Cabletec | 1 | Set | Conductor finish size | For one size |
