500mm PLC LAN Back Twist Pairing Unit For Local Area Network Cable
Dec 14, 2019|

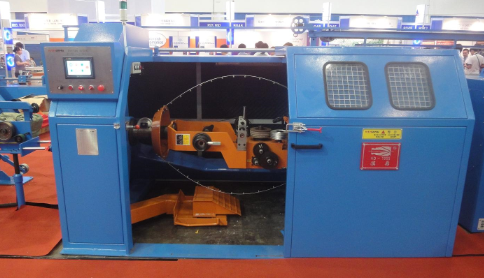

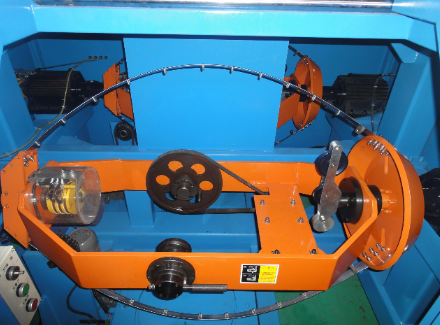

View:510500mm PLC LAN Backtwist pairing unit
1. Application: The machine is specifically applicable to the pair twist of insulation wire of Local Area Network (LAN) cable (that is, cat 5 , cat 5E, cat 6 cable). Two kinds are available for customers to select. One is the left direction (from left to right on the operation facial line) and the other is the right direction (from right to left on the operation facial line).
2. Technical specifications:
1. Diameter of core wire conductor: | Ø0.40--0.65mm |
2. Max. insulation outside diameter of core wire | Ø1.40mm |
3. Max. outside diameter of intertwist | Ø2.8mm |
4. Range of Pitch | 10-30mm（One step every 0.5mm, 40 sets of change gears in total for the selection in time of order） |
5. Back-twisting degree | 0-50% Arbitrary adjustable |
6. Max. speed of take-up twist bow | 200-2000 Revolution |
7. Twisting speed | 400 Twist/Minute-4000Twist/Minute |
8. Max. wire speed | 120 Meter/Minute |
9. Twisting direction | Left direction or right direction |
10. Take-up magnetic powder clutch | Mitsubishi from Japan |
11. Max. rotation speed of back-twisting bow | 100-1500Revolution（Stepless adjustable） |
12. Tension adjustment range | 5～25 Newton |
13. Power of the take-up motor | 7.5KW Variable Frequency motor(Wuxi xianfeng) |
14. Power of the pay off motor | 7.5KW Variable Frequency motor(Wuxi xianfeng) |
15. Specification of the take-up and pay off reel | Ø500× Ø250×250 Inner width×300 external width×Ø56 shaft hole |
16. External dimension of the pay off machine | About 2500×2200×1400mm |
17. External dimension of the take-up | About 2780×1180×1400mm |
18. Overall external dimension of the equipment | About 7200×2200×1400mm |
19. Total weight | About 10.5 T |
5. Main technical parameters of electrical equipment
5.1. Incoming power: Three-phase four–wire 380V 50HZ ±5%
5.2. Control voltage: single-phase 220V 50HZ ±5%；
5.3. Main driving power: AC motor 7.5KW 1450rpm
5.4. Motor Power of the back-twisting bow: AC motor 7.5KW 1450rpm
5.5. Motor Power of pay off motor: AC motor 0.55KW 900rpm×2
5.6. Motor power of the lifting platform: AC motor 0.37KW 1440rpm
5.7. Cooling fan power: AC motor 0.55KW 2800rpm×2
5.8. Take-up magnetic clutch ：12V 0.6A（ZA1-2.5 type Mitsubishi from Japan）
5.9. Total power of equipment: 15kw
If you have interest and need to know more about the details, please contact us anytime(email: kenny@chinacabletec.com; whatapp: 86-13815077328) thanks!
