1. Technical performance of the equipment

This machine is specially designed for the cable core and cross-section of 30-240mm² three-, four-, and five-core plastic insulated power cables or paper-insulated power cables and paper-insulated power cables. The twisted cable can be a round or fan cable.

Features:

1.1. The characteristics of the machine adopting 1+1+3 configuration are: It can produce five-core wire, it can also produce four-core or three-core wire, especially in the production of three large and small four-core wire and four large one and three. When two large and small five-core wires are used, the wire baskets on the twisting cage are not biased.

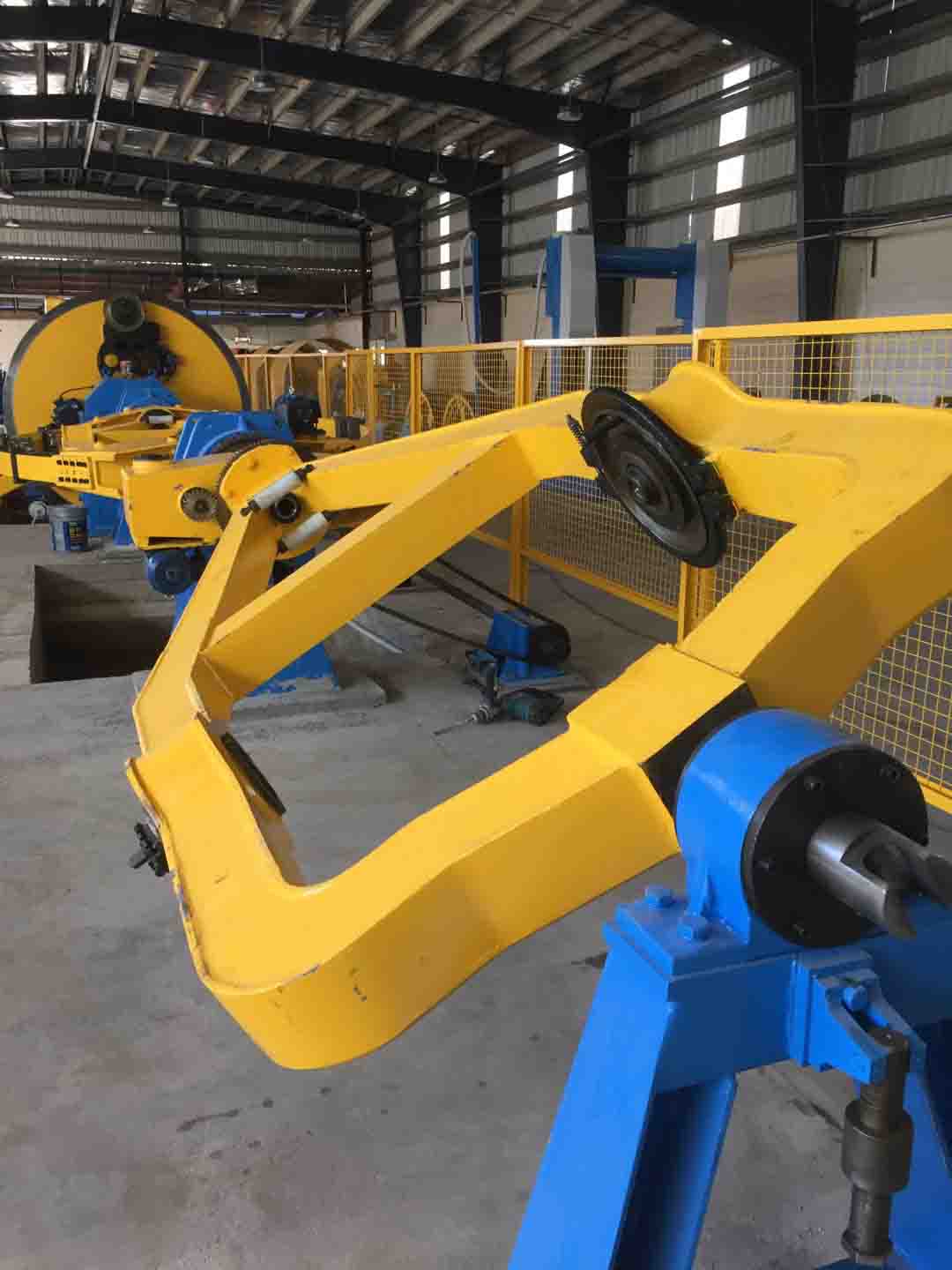

1.2. The machine reel frame can be pre-twisted. The reel inversion is driven by the worm gear mechanism mounted on the reeling machine. The flip angle of each reel frame can be adjusted separately according to the process requirements. The reel rack has a U-shaped cross-section construction. When it is not retracted, the reel has the best bending strength in the vertical position. The clamping and release of the reel thimble is driven by a manual wrench.

1.3. In order to make it easier for the thread on the first reel stand to smoothly pass through the second reel stand, the bow and guide wheels on the reel stand have a sufficiently large radius of curvature.

1.4. The cage is equipped with brakes.

2. Parameter:

2.1. Individual wire section: 30240 mm2

2.2. Rotation speed of cage: 1331.2 rpm (six steps)

2.3. Laying pitch: 1873330mm

2.4. Steel wire bobbin rotating speed: 2863 rpm(six steps)

2.5. Steel wire armoring pitch: 921546 mm

2.6. Taping speed: 166 ~ 387 rpm (six steps)

2.7. Wrapping pitch: 15265 mm

2.8. Capstan power: 5000kg (Pneumatic caterpillar type)

2.9. Pulling speed: 5.83 ~ 43.3 m/min

2.10. Power of main motor: 55 kW (AC)

2.11. pay-off reel size: PN1250 (Drawing to be provided by Buyer)

2.12. Take-up Reel size: PN1250~PN2500

2.13. Stranded cable diameter: Φ80 mm

3. Constituent

3.1. Φ1250 single wire rack 1 set

3.2. Φ1250 rack with revolving bow 1 set

3.3. Φ1250 three-coiled cage (with stuffing device) 1 set

3.4. Main Cutter Gearbox (Six Speeds) 1 set

3.5. Double line die holder 1 set

3.6. Vertical meter counter 1 set

3.7. Φ400/4 high speed wrapper (tangencial type) 1 set

3.8. 36 Step Gearbox 1 set

3.9. 50KN Pneumatic caterpillar 1 set

3.10. 1250-2500 Column type take up 1 set

3.11. Transmission (including main motor) 1 set 12

3.12. Safety fence 1 set

3.13. Electrical control cabinet 1 set

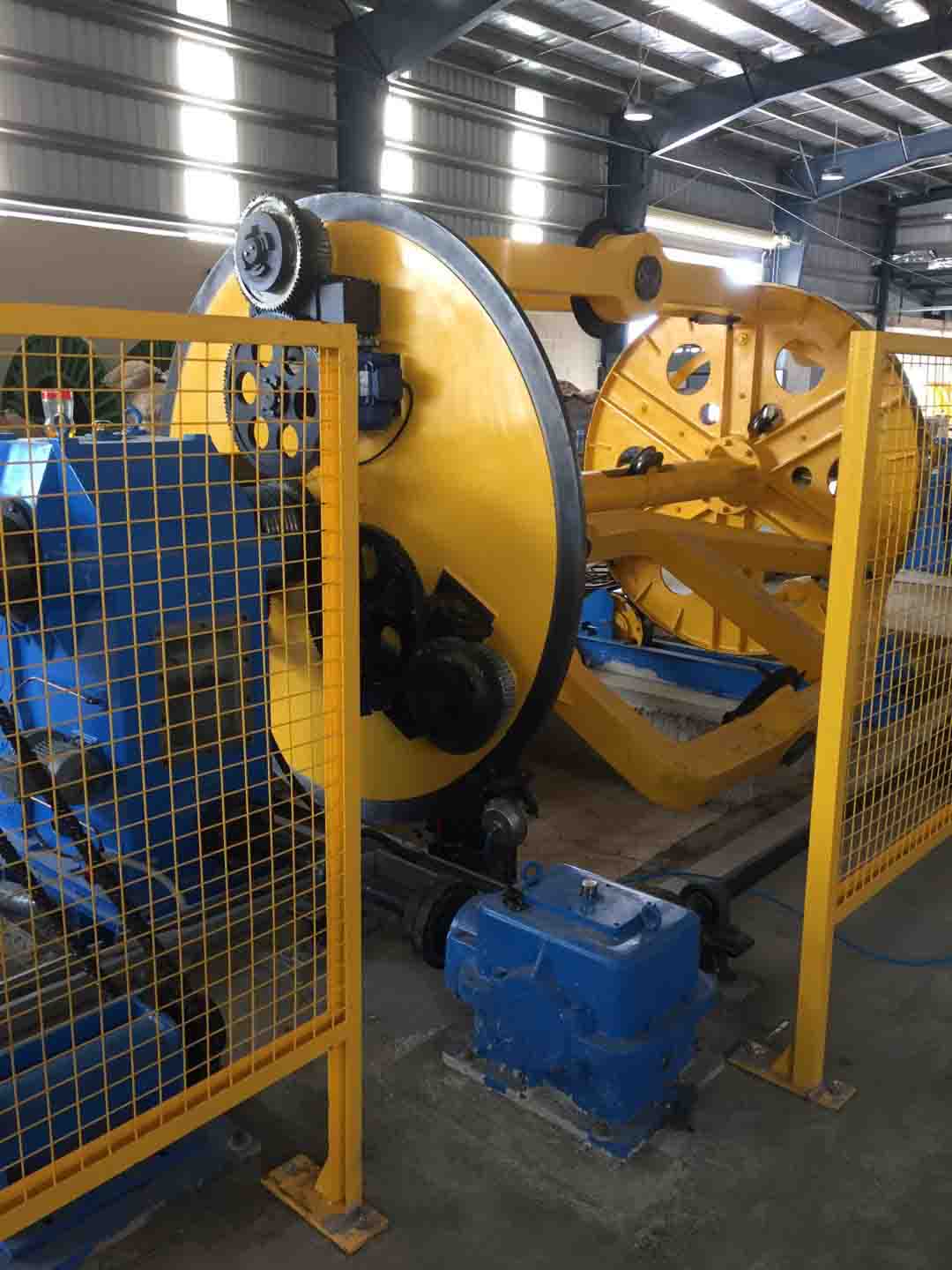

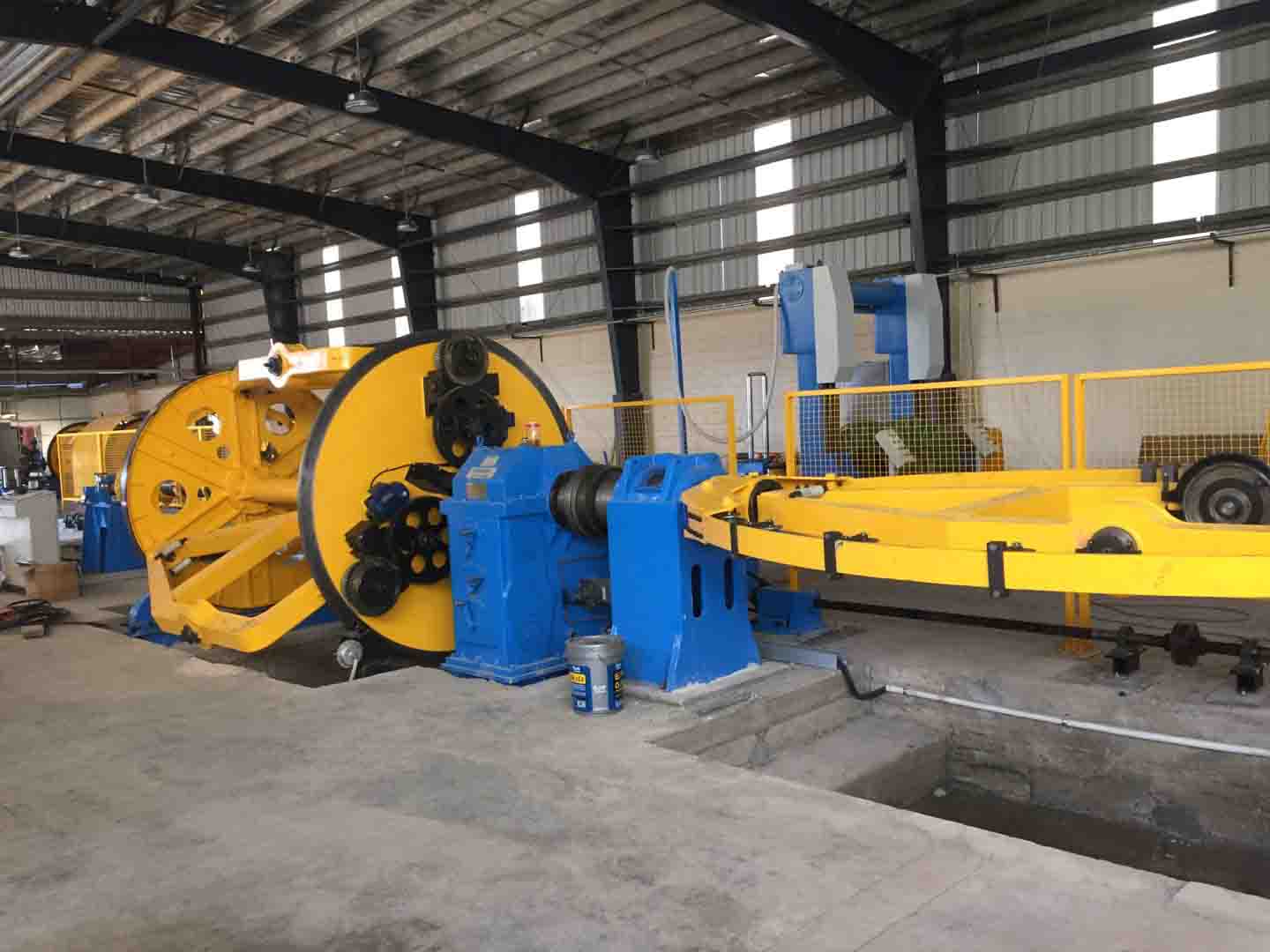

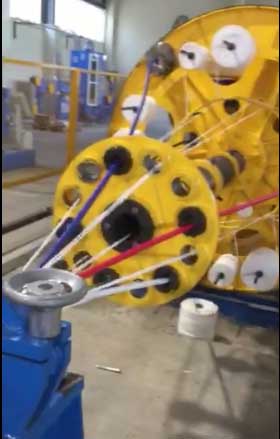

Laying up machine  is being debugged in Fiji
