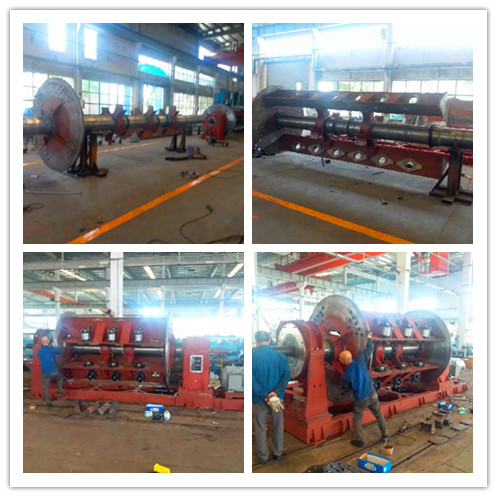

630/6+12+18+24 rigid frame strander final assembly

Have already visited: 7407/03/2019

630/6+12+18+24 RIGID FRAME STRANDER



1.Application:

This equipment is mainly used for stranding and tightening sector conductor, round conductor, and etc.



2.Technical data:

2.1 Bobbin size in the frame              Φ630 (need provide the bobbin drawing)                                            2.2 Inlet wire diameter                      Cu:1.5~5.0mm  Al:1.8~5.0mm

2.3 Twist outer diameter                     φ45mm

2.4 Max. speed of skein                     202 rpm (6 cages)

                                          192 rpm (12 cages)

                                          174 rpm (18 cages)

                                          157 rpm (24 cages)

2.5 Lay length                             50950 mm

2.6 Capstan wheel diameter:                Φ2500 mm (double wheel)

2.7 Line speed                             50 m/min

2.8 Pay-off bobbin for central wire            PND630

2.9 Pay-off bobbin inside cage               PND630

2.9 Take-up bobbin                          PN1250PN2500

2.10 Main motor                            110KW(AC)


If you have any inquiry, please feel free to ask.

Jessie

Email: jessie@chinacabletec.com

Mobile/Wechat/WhatsApp:+86 13815078736630/6+12+18+24 rigid frame strander
