630 mm double twist bunching machine

Have already visited: 6306/21/2019

630 mm double twist bunching machine



1. Applicable scope of the machine:

This machine is full-automatic wireline-intertwist machine with double-twist type, mainly intertwist multi-copper wires.



2. Equipment composition:

No.

Name and specification

Qty.

Unit

Function

Remark

1

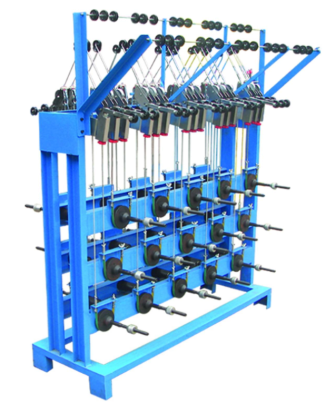

Ø200 mm dynamic bobbin   pay-off

2

set

Pay off wire

48 heads/set; 50 heads/set

2

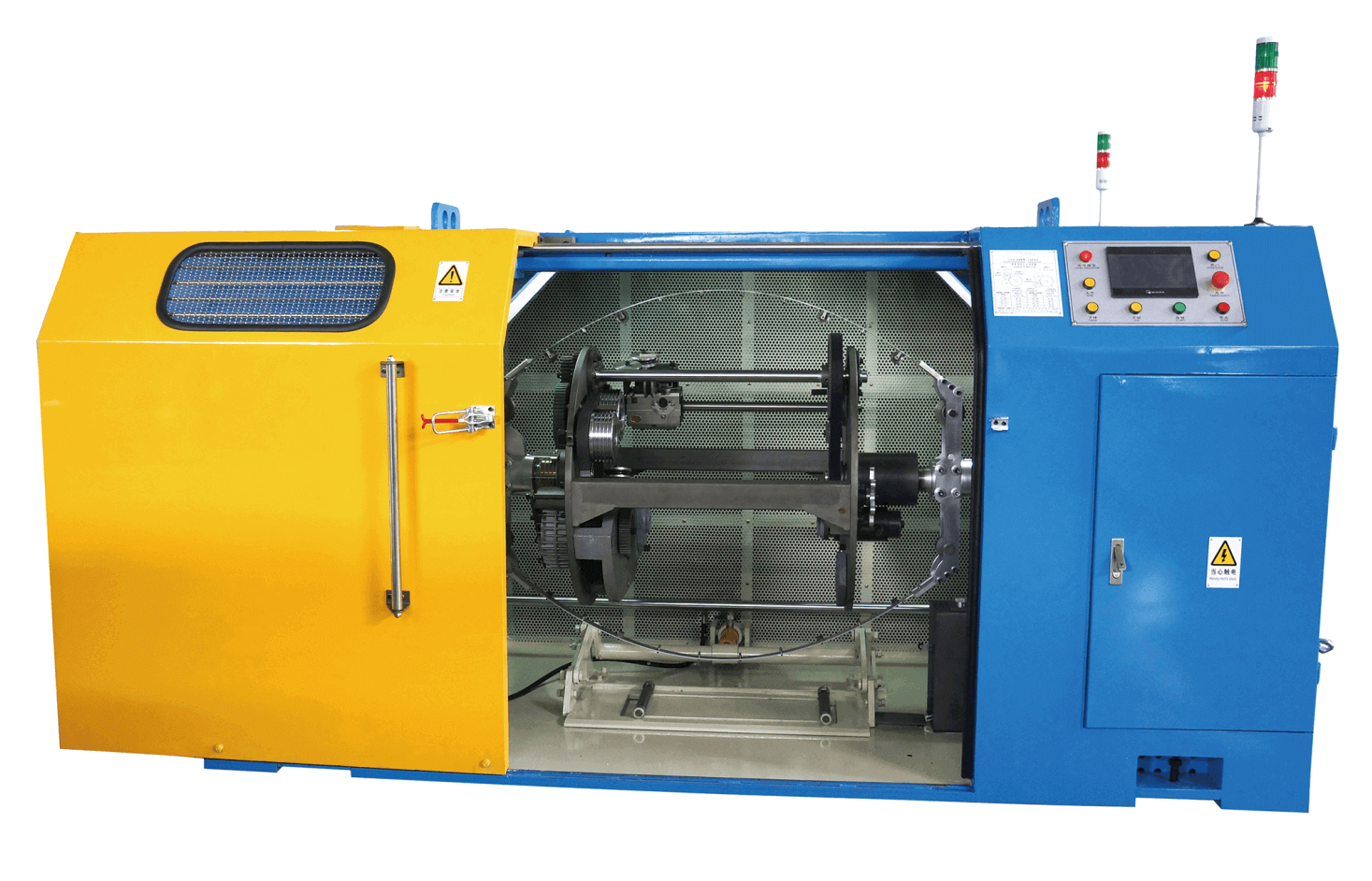

630 mm bunching machine

1

set

twisting


3

Coating: A. RAL5015 B. RAL7035 C. RAL6017  D.RAL5023    E. sample color provided by the client

4

Operation direction: A. From right to left  B. From left to right

5

Installation length of the production line see installation schematic   diagram

 Dynamic bobbin pay-off.png
