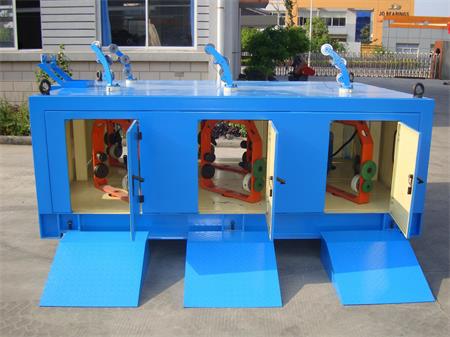

Use with 800mm back twist machine, and product the high-frequency data cable to reach the back twisting function.

1.Applicable wire diameter: Ø2.0mm～Ø6.0mm.

2. Applicable disc diameter Ø800mm ABS spool (or customer supply it).

3.Spool size:Outside Diameter 800mm×Outside width 600mm×Inner width 500mm×Hole 80mm.

4. Quantity of pay off: 1 head/pc.

5. Back twisting direction：Any switch can be done at S and Z directions.

6. Tension range: ：5kg adjustable;

7. Tension control: Controlled by the magnetic clutch 5KG, and this clutch can be used with the cabling machine together, the tension can be adjusted by hands outer of the machine, and the machine can be stopped when the wire is broken;

8. The rotating part should be done dynamic balance correction;

9. Power: 11KW AC motor, attached with frequency control;
