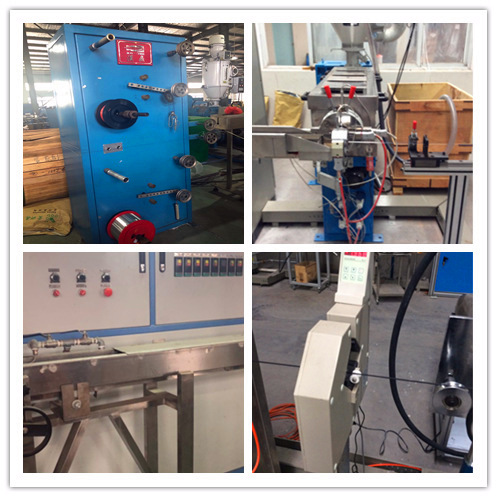

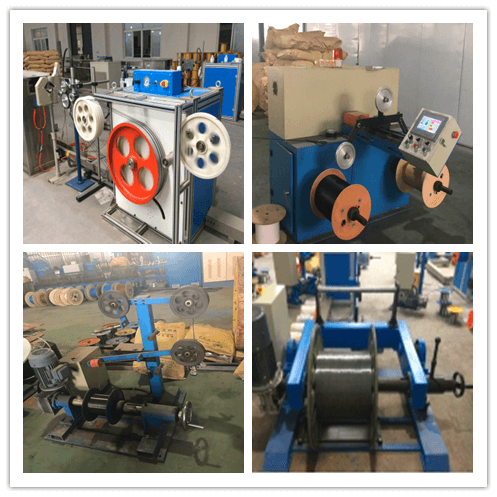

1.Application

Used in the production of the skin cable, for FTTH optical fiber, the sheath material is PVC, LSZH etc.

2.Main technical data

2.1. Optical fiber diameter: Φ0.9 mm, Φ0.6 mm

2.2. Cable diameter: Φ1.8 mm~Φ7.2 mm

2.3. Production line speed: Max.70m/min(LSZH); 100m/min(PVC)

2.4. Tightly packaged optical fiber bobbin size: Φ400 mm

2.5. Tightly packaged optical fiber pay-off tension: 1 N～3 N (adjustable)

2.6. Extruder: Φ50 mm extruder

2.7. Take-up tension: 1 N～3 N (adjustable)

2.8. Take-up bobbin size: PN400～PN630

2.9. Production Line direction: according to customer on-site

2.10. Production line color: specified by the customer

2.11. Center height of production line: 1000 mm
