Application

The joint application between wire extruder unit and wire pay off machine enable the realization of continuous coiling (wire feeding , wire pressing, wire arranging, lap making, wire cutting, lock coiling, and feed coiling can be finalized at the same time).

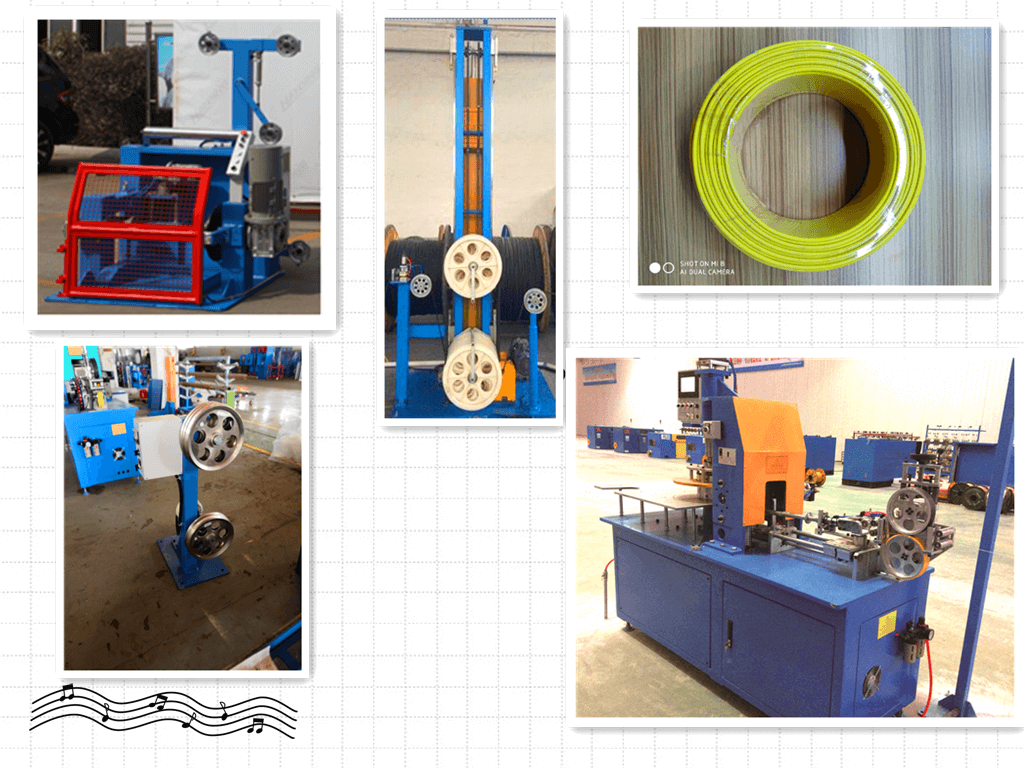

One process flow as listed

1.Box type active pay off machine without shaft

2.Vertical Accumulator

3.Tension Control Frame

4.Computerized Automatic Coiling Machine

a. Length counter -------------------------- 1 set

b. Wire/cable feeding rod ----------------- 1 set

c. Gate type Cutter ------------------------- 1 set

d. Coiling plate & coiling head ----------- 1 set

e. Traversing system ----------------------- 1 set

f. 4 arms carrier --------------------------- 1 set
