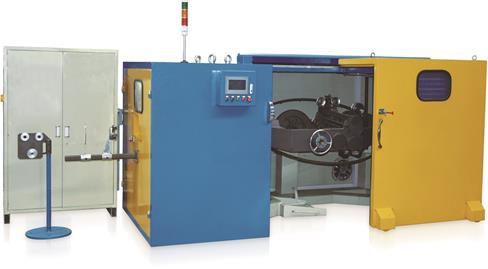

630mm E bunching machine

1.Twist wire irregularly, section area of twisted wire:0.50-6mm²

2.Twist wire semi-regularly, section area of twisted wire(1+6): 0.35-6mm²

3.Twist wire regularly, section area of twisted wire(1+ 6+ 12UNILAY): 0.597-6mm²

4.Wire diameter: 0.15-0.60mm(Twist wire irregularly)

0.252-1.04mm (Twist wire semi-regularly 1+6)

0.20-0.60mm (Twist wire regularly 1+6+12)

5. Final dimension:

5.1.Diameter of irregularly twisted wire: Max 5.4mm

5.2.Diameter of semi-regularly twisted wire (1+6): 0.75-3.12mm

5.3.Diameter of regularly twisted wire (1+6+12): 0.97-3mm

6.Pitch: When the pitch gear is Z=28/57, the range of pitch is 17.11-108.74mm

7.Maximum rotation speed: 2375rpm

8.Maximum wire speed: 300mm/min(Tube diameter of bobbin297mm)

9.Bobbin size: flange diameter 475-630mm, inner width 315mm, outer width 475mm, hole diameter 56mm

10.Take up tension: 20-50N/mm²

11.Diameter of wire wheel in the fixed top:139mm

12.Bobbin diameter: 160mm

13.Max bobbin tension(on the highest speed): 880N

14.Emergency-stop braking time: 5-6s(on the highest speed)

15.Noise Figure (NF): 82dBA
