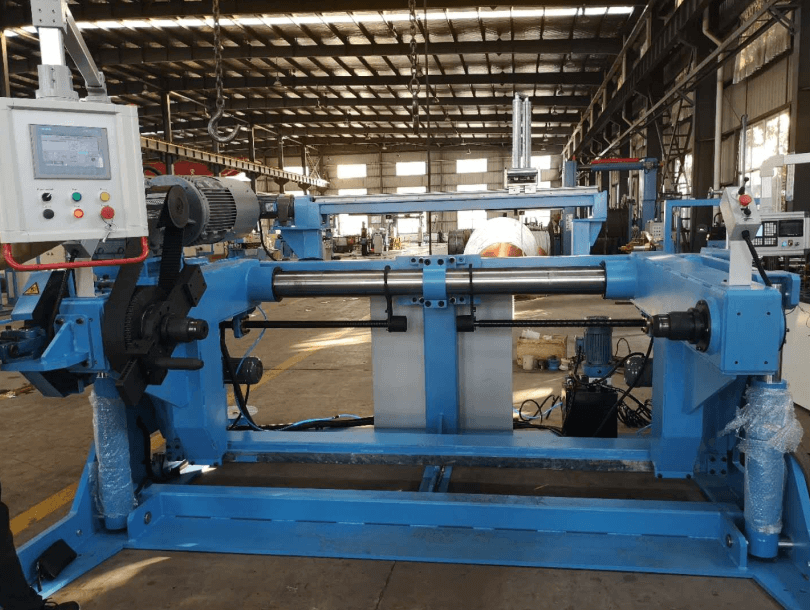

Cantilever Take Up

1. Type: Cantilever type

2. Bobbin diameter: Φ1000mm, Φ1250mm, Φ1600mm, Φ2000mm

3. Load and upload bobbin: Hydraulic lift, top shaft on both sides cantilever type bobbin up and down

4. Jacking way: Electrical moving arm clamp or loosen bobbin

5. Wire pay off power:3 Phases, 380V, 5.5 kw Germany SIEMENS motor with reduction gears

6. Brake: Pneumatic butterfly brake7. Traverse: Gear motor drives
