Mobile phone data cable machine lines
 Mar 16, 2020|View:444

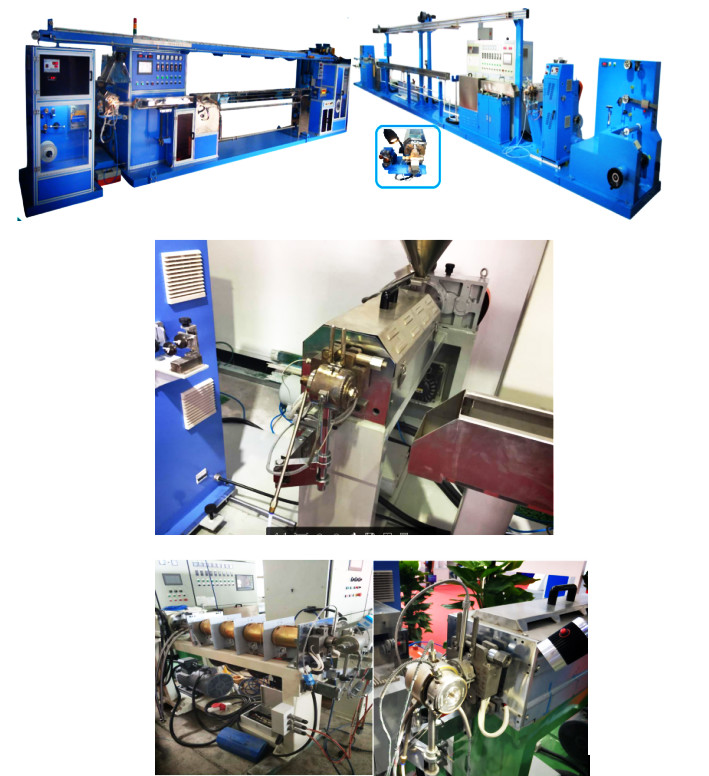

φ50mm Core Wire Extrusion Line

1. Main parts

No.

Specification

Brand

Qty.

Unit

Remark

1

Ø250-500 automatic high precission

active payoff

Cabletec

1

Set


2

Copper preheater

Cabletec

1

Set


3

Straightening table

Cabletec

1

Set


4

Ø50mm extruder

Cabletec

1

Set


5

Electrical control cabinet

Cabletec

1

Set


6

U7 single layer crosshead

Cabletec

1

Set


7

1.8m movable water trough

Cabletec

1

Set


8

9M single layer cooling water trough

Cabletec

1

Set


9

9M horizontal accumulator

Cabletec

1

Set


10

Ø250 Double wheel capstan

Cabletec

1

Set


11

Ø400-560mm double shaft take up

Cabletec

1

Set


12

Laser diameter tester

Online

1

Set


13

High frequency spark tester

Cabletec

1

Set


14

Tools and accessories

Cabletec

1

Set


15

The machine operation manual

Cabletec

1

pc


2. Main application

2.1. Used for HDPE/PP

2.2. Inlet wire specification: 0.24-0.71 mm

2.3. Wire speed: 600m/min (depends on wire specification)

2.4. Capacity: Max 50KG/H

2.5. Voltage: 380V 50HZ

2.6. Center height:1000mm

2.7. Amount of air pressure:18m³/Hr

If you want to learn more about the process of making mobile phone data cables, pls feel free to send an inquiry.
