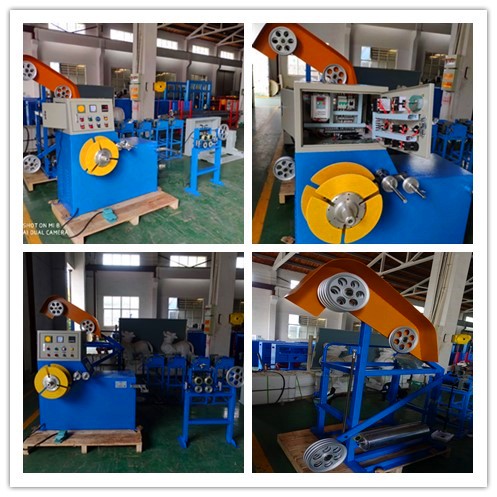

Site commissioning for 800mm small cross-section coiling machine
Small cross section coiling machine
1. Equipment Composition:
1.1. 630-800mm tensionpay-off
1.2. Small cross section coiling machine
1.3. Meter-counting device
2. Main brands:
2.1. Main motor: WANNAN motor
2.2. Inverter: Siemens
2.3. Low voltage electrical appliance: Changde
3. Equipment technical specification:
3.1. Pay off mode: Automatic tension pay off;
3.2. Pay off bobbin diameter: ≤Ø800mm
3.3. Traverse mode: Automatic traverse
3.4. Number of slots of wire bundle: 3 slots
3.5. Output per shift: about 700 bundles (8 hours)
3.6. Host speed: 0-500rpm
3.7. Inside diameter of wire bundle: Ø120mm
3.8. Outside diameter of wire bundle: ≤Ø310mm
3.9. Height of wire bundle: 30-100mm
3.10. Power of motor: 3HP
3.11. Scope of Application: 0.5 mm2-6 mm2 electric wire
