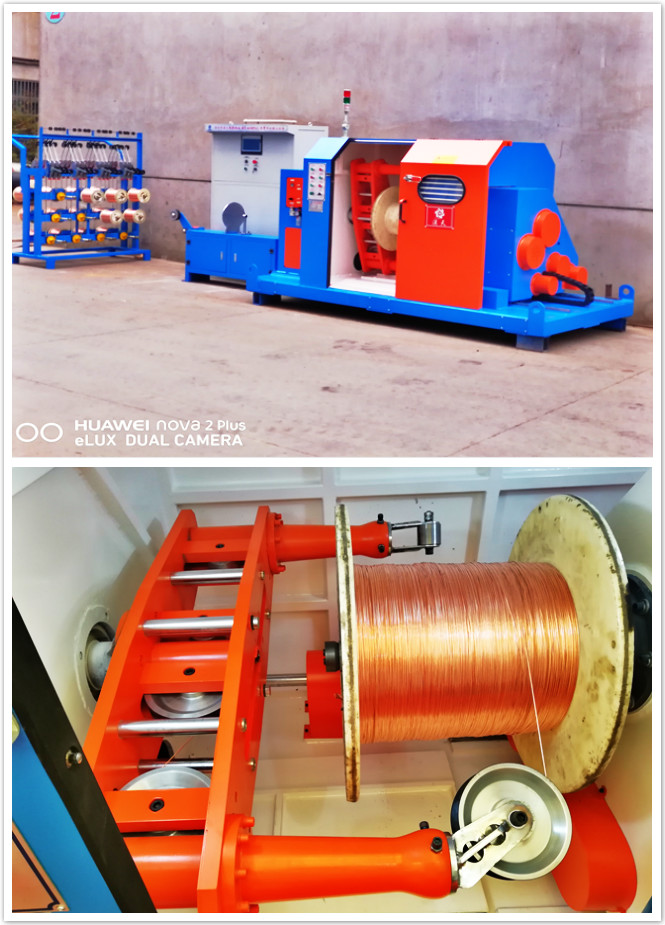

630 mm PLC cantilever type single twister
Sep 17, 2019|
View:598630 mm PLC cantilever type single twister
1. Applicable scope of the machine set: used for all kinds of bare conductor compacting and twisting, and core wire twisting. If combined with back-twister, it can be used for twisting data cable.
2. Main parameters
2.1. Applicable core wire: Ø0.10-Ø1.20 mm
2.2. Twisting outer diameter: MAX. Ø6 mm
2.3. Range of cable pitch: 10 mm-80 mm (computer control)
2.4. Pay off bobbin diameter: Ø200 mm- Ø300 mm (or customized)
2.5. Take-up bobbin diameter: Ø630 mm (axle hole: Ø56 mm, attached drawing)
2.6. Rotation speed of single-twisting machine: 700 rpm/min in normal service
2.7. Directions: left, right (“S”, “Z”); can be reversed
2.8. The center height: 1000m
3. Equipment composition
No. | Name and specification | Quantity | Remarks |
1 | Dynamic bobbin pay off | 1 | 41 heads or customized |
2 | Die holder | 1 | |
3 | Ø630 mm cantilever type single twister host | 1 | |
4 | PLC Main control cabinet | 1 | |
5 | Machine color: □ apple green No. 2; □ turkey blue; □ safety color yellow; Electrical control box: □ same as the machine color □ grey and white stripe paint □ sample color provided by the client | ||
6 |
| ||
7 | Complete production line length. See installation schematic drawing. | ||
