500 mm /6 bearing type tubular strander
Jan 18, 2019|
View:524500 mm /6 bearing type tubular strander
Application
Bearing tubular strander is mainly used for the twisting of copper, aluminum and ACSR, and also suitable for the cabling of the small-section control cables.
Bearing tubular strander is mainly composed of fixed pay-off, 6-disc stranders, die holder, double-wheel capstan, take up & traverse rack, transmission system and electrical control system, etc. Bearing tubular stranding machine can also add wrapping devices according to customers’ requirements.
Specification
Type | JGGB-500 | JGGB-630 |
Single wire dia. (mm) | Copper: Φ1.0-Φ3.5 | Copper: Φ1.2-Φ3.5 |
Aluminum: Φ1.5-Φ5.0 | Aluminum: Φ1.5-Φ5.0 | |
Steel: Φ1.2-Φ3.5 | Steel: Φ1.2-Φ3.5 | |
Insulation wire core:Φ1.5-Φ5.0 | Insulation wire core:Φ1.5-Φ7.0 | |
Stranding dia. (Max.) (mm) | Φ15 | Φ15 |
Cage rotation (rpm) | 600 | 500 |
Stranding pitch (mm) | 26-196 | 35-266 |
Taping rotation (rpm) | 171-380 | |
Taping pitch (mm) | 11-181 | 11-188 |
Capstan line speed (m/min) | 15-118 | |
Capstan wheel (mm) | Φ1250 | Φ1250 |
Pay off bobbin | PND500 | PND630 |
Take up bobbin | PN800-PN1600 | PN800-PN1600 |
Main motor (KW) | 30 (AC) | 45 (AC) |
Jessie Jiang
Changzhou Cabletec Machinery Co., Ltd.
Email: jessie@chinacabletec.com
Mobile/Wechat/WhatsApp:+86 13815078736
www.chinacabletec.com

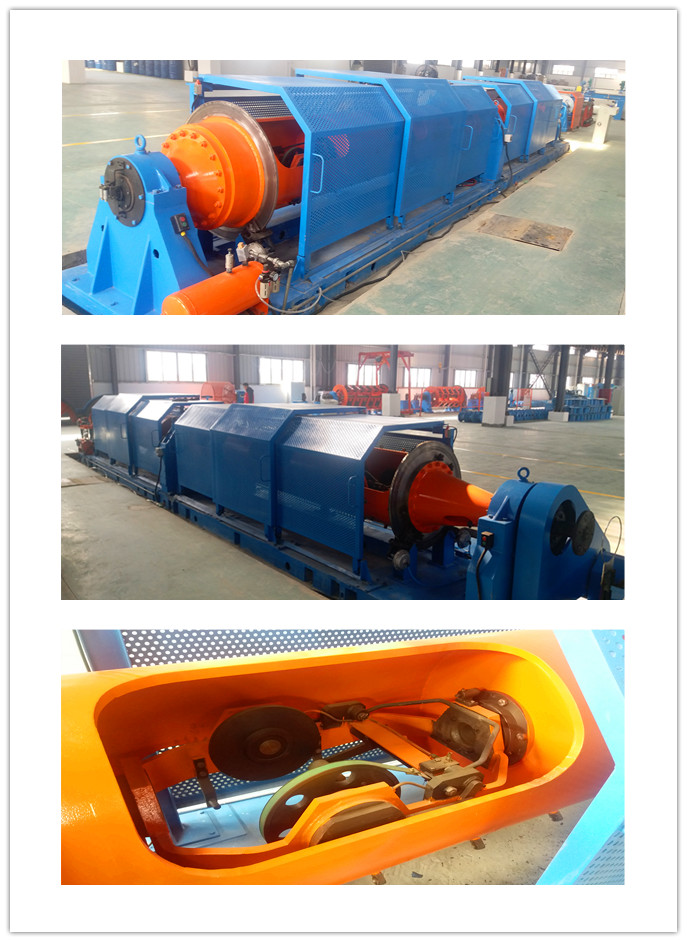

Photos of machine site installation
