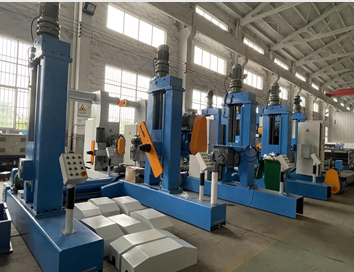

Gantry moving type pay-off & take-up machine + pneumatic belt caterpillar are testing before shippment
Sep 18, 2021|View:495
Φ1250mm-Φ2500mm Portal type active pay-off
1. Outer diameter of bobbin: Φ1250-Φ2500mm;
2. Width of bobbin: 950-1900mm;
3. Applicable cable diameter: max100mm
4. Pay-off speed: max 80m/min
5. Applicable bobbin weight: 12T
6. Pay off type: active in middle
7. Pay off motor: Z4-112/4-2、7.5kw、1480rpm;
8. Take-up controller:AC frequency converter speed-regulation controller
9. Moving motor: AC frequency conversion 1.5KW
10. Lifting motor: AC 1.5KW;
11. Clamping motor: AC 1.1KW;
