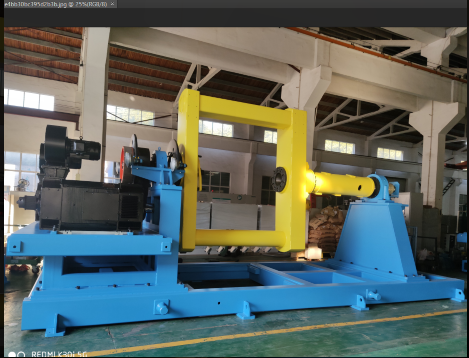

Our Ф1600mm PLC B type single twist bunching with armoring machine are testing before shippment
1. Apply to twist LV wire, control cable, MV power cable, steel wire armoring, steel wire screening, pay off wire from capstan directly. Production speed high, can get best cable trough single twist bunching machine.
2. Main parameters:
2.1.Main motor:220KW,
2.2.Take-up motor: 220KW,
2.3.Main braking: Air brake
2.4. Motor clamp wire bobbin with self lock function
2.5. Pay off bobbin: supplied by customers
2.6. Take up bobbin: 1600mm
2.7. Load and unload bobbin adopt separate hydraulic pressure.
2.8. Suitable to pay off cable:Φ5-20mm.
2.9. Finished diameter:Φ25mm
2.10.Twisting range: 100-1000mm, stepless regulation.
2.11. Designed speed: 300RPM, working speed: 250RPM
