Uses and performance characteristics of Tubular Strander
 Nov 25, 2020|View:488

It is suitable for stranding of large length and large cross-sectional area aluminum/aluminum alloy wire, bare copper wire, steel core aluminum stranded wire, sector conductor and cross-linked compact cable core.

Tubular StranderPerformance Characteristics:

1. The wire reels are divided into four equal parts around the twisting cage, and the reels are concentrated. The equipment has high rigidity and strength, good overall performance, small moment of inertia and high operating speed.

2. The equipment's traction drive adopts 36-stage gear box, dual active, dual traction device, and the maximum traction force can reach 15 tons. The traction device adopts natural line splitting to avoid wire core scratches during the process of splitting.

3. The tension is even when the spool is full to empty.

4. The equipment adopts the most advanced disconnection stop device at present, which can be directly controlled to each spool. When any spool is disconnected, the host will automatically stop. To ensure the repair of the wire after the wire break, it is especially suitable for the production of power cables and high-pressure cross-linked cables.

5. The equipment can ensure that the 630mm copper core with a compaction density of 90% or more is drawn and compacted to meet the needs of large cross-section cross-linked cable stranding.

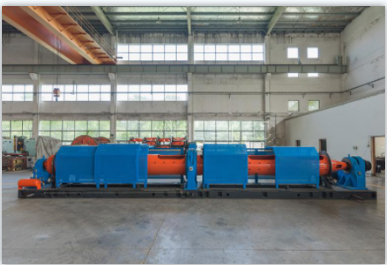

tubular strander


https://www.chinacabletec.com/Product/JGGB-bearing-type-tubular-strander.html

Contact me for more details about the machine.
